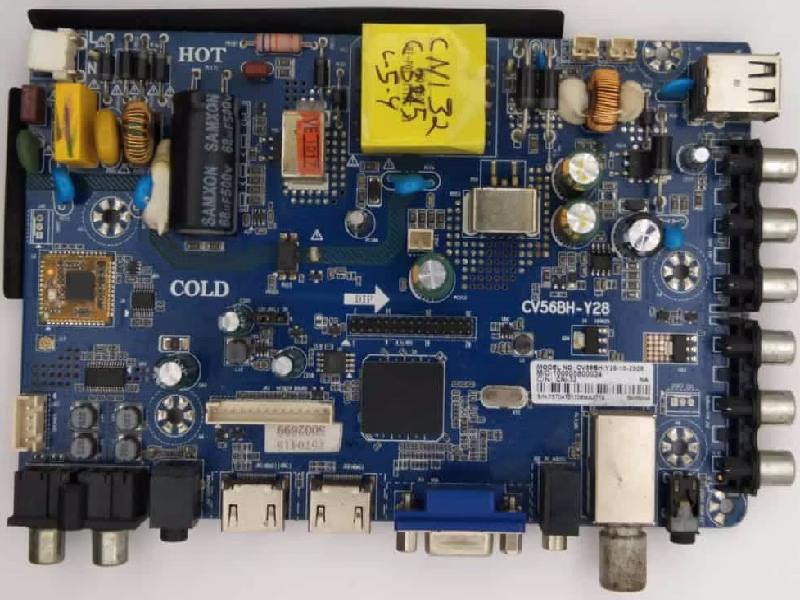

CV56BH-Y28 LED TV Board
CV56BH-Y28 is a simple ATV Universal Driver Motherboard, especially with Bluetooth feature designed for 32-40 inch LCD/LED TVs. This Board is suitable for the Asia Pacific and the Middle East markets. CV56BH-Y28 is a combo board that is compatible with many LCD or LED panel screens.
CV56BH_Y28 is a three-in-one board that has a built-in power module and LED Backlight driver module with an ATV RF Tuner. This board has all the features as per the latest requirements and connectivity ports like HDMI input, USB interface, PC input (VGA), Component Input, TV, and Headphone jack.
General Specifications:
Brand/Mark: Universal Bluetooth Board
Model: CV56BH- Y28
Main Chip: TSUMV56RUU-Z1
Product: LED TV
Backlight Voltage: 35-58v
LED Backlight: 350 mA
Backlight Power: 25w
Flash IC: 4Mb
Sound IC:
Screen supported: 32-40 inch
Resolution: Up to 1920×1080
Panel Voltage: 5V, 12V
Power Input: AC220
Service Code:
Source/Input+2580
Note: The following given software/firmware is USB upgradeable and Backup Dump Files. Kazmi Elecom Team is not responsible for any type of damage/loss as a result of loading/installing the firmware. If you are new and lack knowledge of loading or installing software/firmware or dump files, read here first.
How to Download:
Download the following firmware/software and then extract it. You will get the folder. Now copy the files to USB. For more Details about the download process watch the video Click Here
CV56BH-Y28 firmware for free download:
