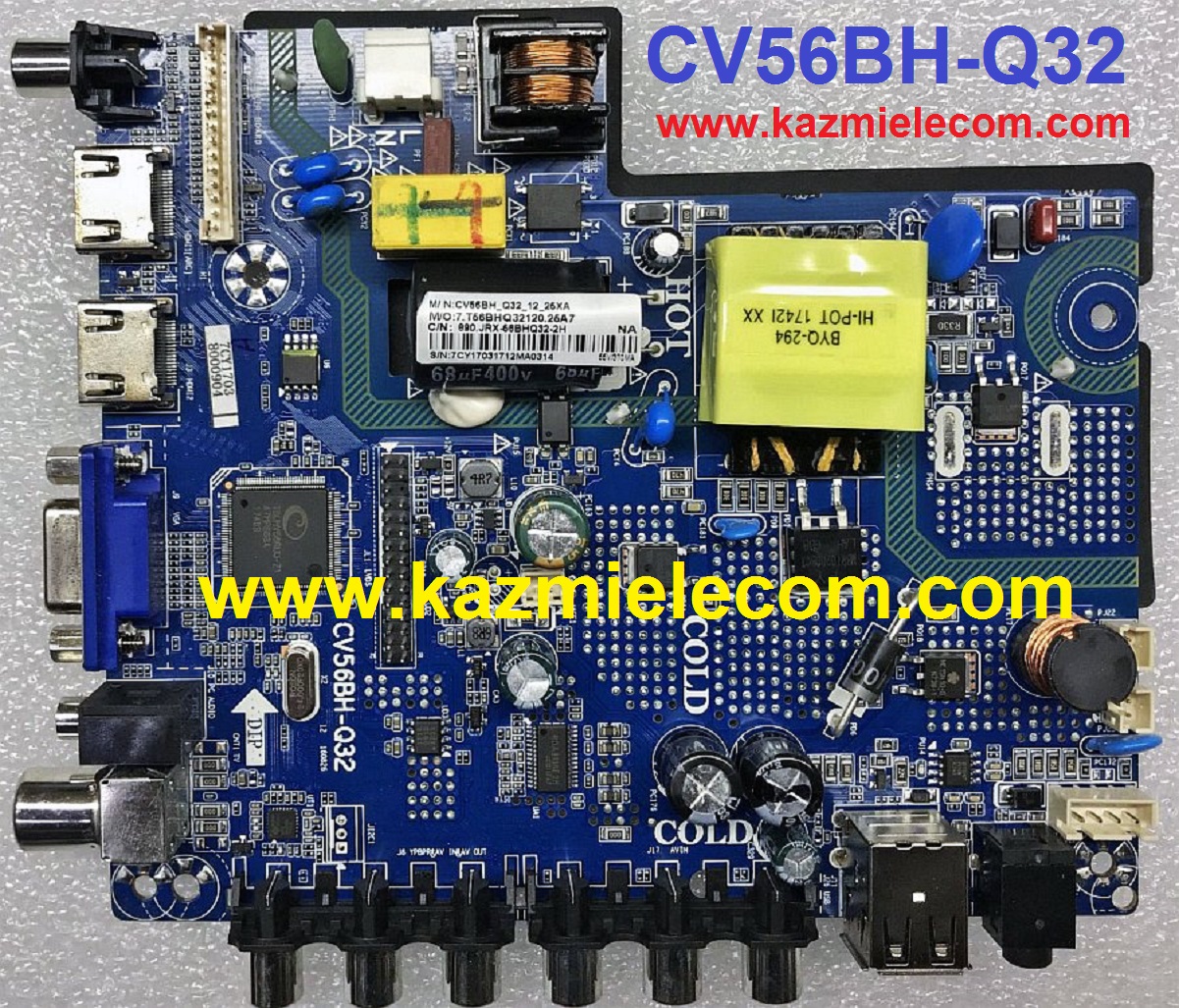

CV56BH-Q32 LED TV Board
CV56BH-Q32 is a simple ATV Universal Driver Motherboard designed for LCD/LED TVs. This Board is suitable for the Asia Pacific and the Middle East markets. CV56BH-Q32 is a combo board that is suitable for many LCD or LED panel screens. CV56BH_Q32 has a built-in power module and LED Backlight driver module with ATV RF Tuner. This has all the features as per the latest requirements and connectivity ports like HDMI input, USB interface, PC input, Component Input, TV, and Headphone jack.
General Specifications:
Brand/Mark: Universal Jumper Board
Model: CV56BH- Q32
Main Chip: TSUMV56RUU-Z1
Product: LED TV
Backlight Voltage: 35-55v
LED Backlight: 450 mA
Backlight Power: 35w
Flash IC: 4Mb
Sound IC: RDA3118
Tuner: Rafael R842
Screen supported: 32-40 inch
Resolution: Up to 1920×1080
Panel Voltage: 5V, 12V
Power Input: AC220
Service Code:
Source/Input+2580
Note: The following given software/firmware is USB upgradeable and Backup Dump Files. Kazmi Elecom Team is not responsible for any type of damage/loss as a result of loading/installing the firmware. If you are new and do not have enough knowledge of loading or installing software/firmware or dump files then read here first.
How to Download:
Download the following given firmware/software and then extract you will get the folder. Now copy the files to USB. for More Detail about download process watch the video Click Here
Here are below some CV56BH-Q32 firmware for free download:
| S.NO. | BOARD/DESCRIPTION | DOWNLOAD LINK |
|---|---|---|
| 1 | CV56BH-Q32_1366×768_SAMSUNG_USB | Download |
| 2 | CV56BH-Q32_1366X768_IRBIS_DUMP | Download |
| 3 | CV56BH-Q32_1366X768_MAXWELL_DUMP | Download |
| 4 | CV56BH-Q32_1366X768_MICROMAX_DUMP | Download |
| 5 | CV56BH-Q32_1366X768_SONY_DUMP | Download |
| 6 | CV56BH-Q32_1366X768_VESTA_DUMP | Download |
