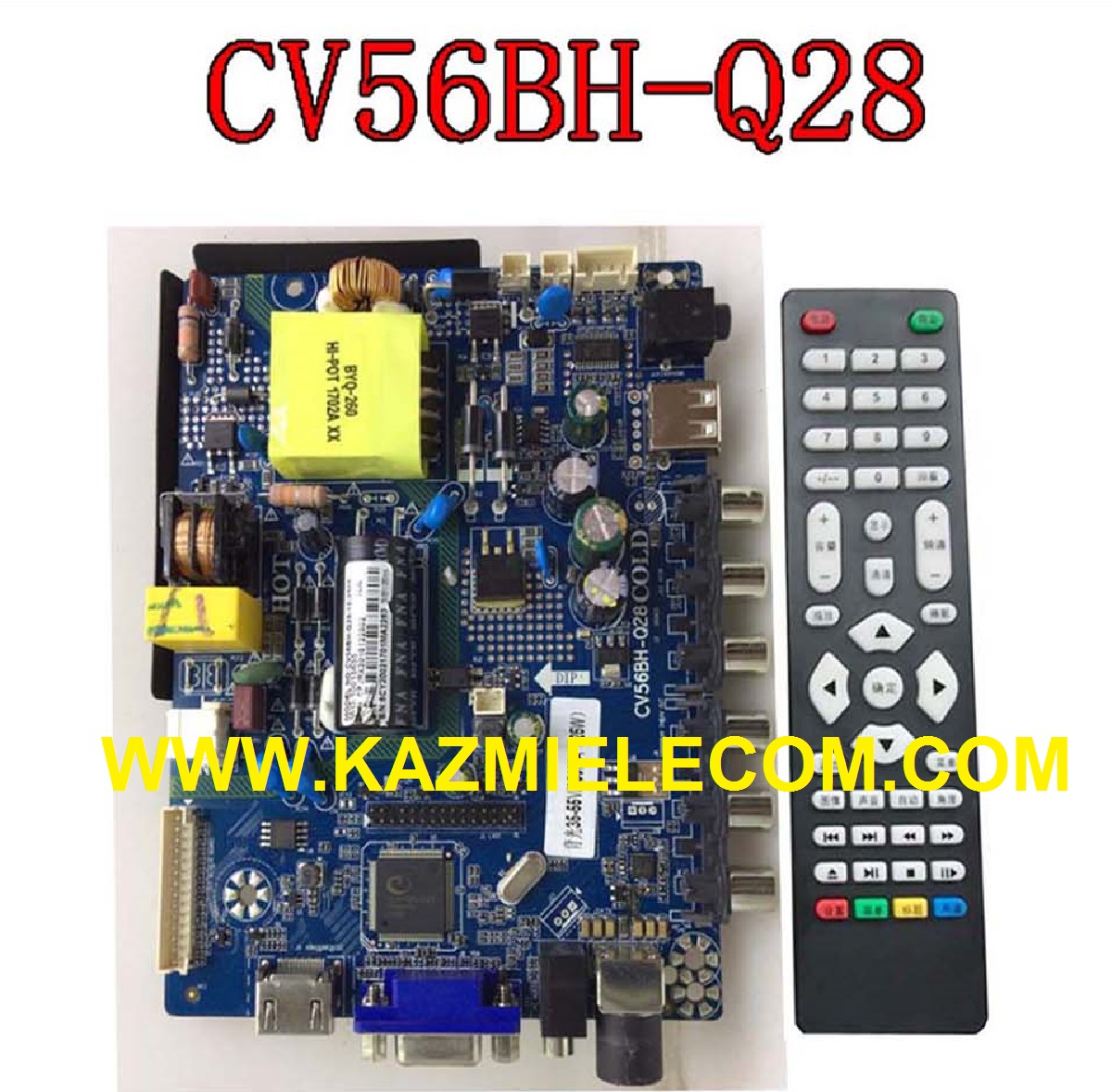

CV56BH-Q28 LED TV Board
CV56BH-Q28 is a simple ATV Universal Driver Motherboard designed for LCD/LED TVs. This Board is suitable for the Asia Pacific and the Middle East markets. CV56BH-Q28 is a combo board that is suitable for many LCD or LED panel screens.
CV56BH_Q28 has a built-in power module and LED Backlight driver module with an ATV RF Tuner. This has all the features as per the latest requirements and connectivity ports like HDMI input, USB interface, PC input, Component Input, TV, and Headphone jack.
General Specifications:
Brand/Mark: Universal Jumper Board
Model: CV56BH- Q28
Main Chip: TSUMV56RUU-Z1
Product: LED TV
Backlight Voltage: 35-55v
LED Backlight: 350 mA
Backlight Power: 25w
Flash IC: 4Mb
Sound IC:
Screen supported: 32-40 inch
Resolution: Up to 1920×1080
Panel Voltage: 5V, 12V
Power Input: AC220
Service Code:
Source/Input+2580
Note: The following given software/firmware is USB upgradeable and Backup Dump Files. Kazmi Elecom Team is not responsible for any type of damage/loss as a result of loading/installing the firmware. If you are new and lack knowledge of loading or installing software/firmware or dump files, read here first.
How to Download:
Download the following firmware/software and then extract it. You will get the folder. Now copy the files to USB. For more Details about the download process watch the video Click Here
CV56BH-Q28 firmware for free download:
| S.NO. | BOARD/DESCRIPTION | DOWNLOAD LINK |
|---|---|---|
| 1 | CV56BH-Q28_1366X768_SAMSUNG_USB | Download |
| 2 | CV56BH-Q28_1366X768_SONY_USB | Download |
| 3 | CV56BH-Q28_1920X1080_SAMSUNG_USB | Download |
| 4 | CV56BH-Q28_1366X768_WELCOME_USB | Download |
| 5 | CV56BH-Q28_1366X768_WELCOME_DUMP | Download |
