CV56BH-LED TV Main Board
CV56BH is a simple ATV Driver Motherboard designed for LCD/LED TVs. This Board is suitable for the Asia Pacific and the Middle East markets. This Combo Board has the integration of the main power module, LED Backlight Inverter Circuit, and ATV Card in a single piece of a motherboard. This has all the features as per the latest requirements like HDMI input, USB interface, PC input, Component Input, TV, and Headphone jack.
CV56BH is available in the market with different model names. Some of them are given below:
General Specifications:
Brand/Mark: Universal HD Three in One Board
Model: CV56BH- All Models
Main Chip: TSUMV56
Product: LED TV
LED Backlight: 35w to 45w
Flash IC: 4Mb
Screen supported: 26-46 inch
Resolution: Up to 1920×1080
Panel Voltage: 12V
Power Input: 220V AC
Service Code:
Source/Input+2580
Note: The following given software/firmware is USB upgradeable and Backup Dump Files. Kazmi Elecom Team is not responsible for any type of damage/loss as a result of loading/installing the firmware. If you are new and do not have enough knowledge of loading or installing software/firmware or dump files then read here first.
How to Download:
Download the following given firmware/software and then extract you will get the folder. Now copy the files to USB. for More Detail about download process watch the video Click Here
Here are below some CV56BH firmware for free download:
| S.NO. | BOARD/DESCRIPTION | DOWNLOAD LINK |
|---|---|---|

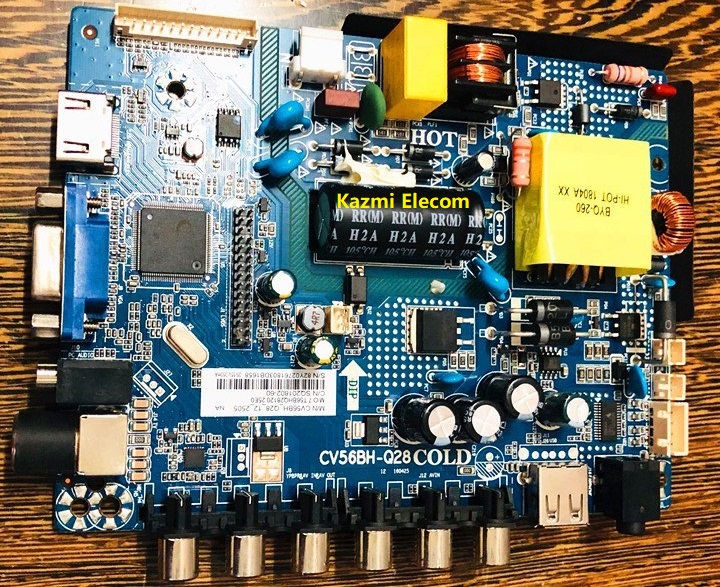

| 1 | CV56BH-Q28_Software.part1 | Download |
| CV56BH-Q28_Software.part2 | Download | |
| 2 | CV56BH-Q32_Software.part1 | Download |
| CV56BH-Q32_Software.part2 | Download | |

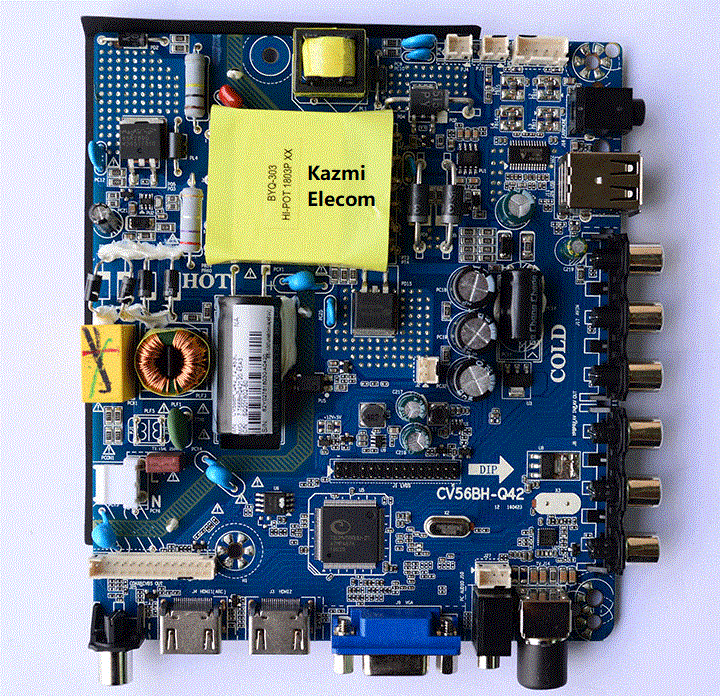

| 3 | CV56BH-Q42_Software.part1 | Download |
| CV56BH-Q42_Software.part2 | Download | |
| CV56BH-Q42_Software.part3 | Download | |
| CV56BH-Q42_Software.part4 | Download | |
| CV56BH-Q42_Software.part5 | Download | |
| CV56BH-Q42_Software.part6 | Download |
