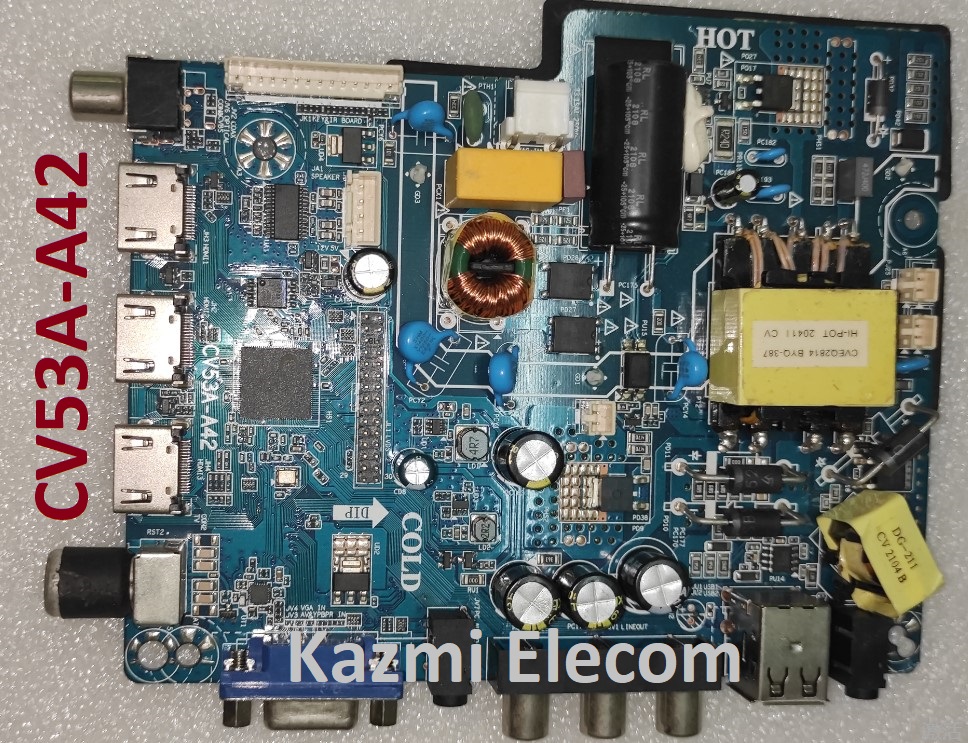

CV53A-A42 LED TV Board
CV53A-A42 is a simple ATV Driver Motherboard designed for LCD/LED TVs. This board is suitable for the Asia Pacific and the Middle East markets. This is a Combo Board. The main power module, LED Backlight Inverter Circuit module, and ATV Card are built into this motherboard.
This board has all the features as per the latest requirements like HDMI input, USB interface, PC input, Component Input, TV, and Scart.CV53A-A42 firmware files are given below for the technician’s support.
General Specifications:
Brand/Mark: Universal Board
Model: CV53A-A42
Main Chip: TSUMV53
Product: LED TV
Backlight Volt: 40V -70V 45W/60-100V 45W
LED Backlight: 600 mA
Flash IC: 4 Mb
Input: HDMI*3, TV（RF）,VGA*1, PC AUDIO*1, AV IN*1, USB*2,
Output: COAX, EARPHONE，
SPEC.: Video System： PAL,NTSC, SECAM
Sound System：BG, DK, I, M/N, NICAM/A2
Screen supported: 38.5, 42, 43, 49/50 inch
Resolution: Up to 1920×1080
Panel Voltage: 5V, 12V
Power Input: 220V AC
Service Code:
Source/Input 2580 or Menu 1147
Note: The following firmware is a backup file. Kazmi Elecom Team is not responsible for any type of damage/loss as a result of uploading/downloading the firmware. If you are facing any issues during firmware installation then visit and read here first.
CV53A-A42 firmware for free download:
