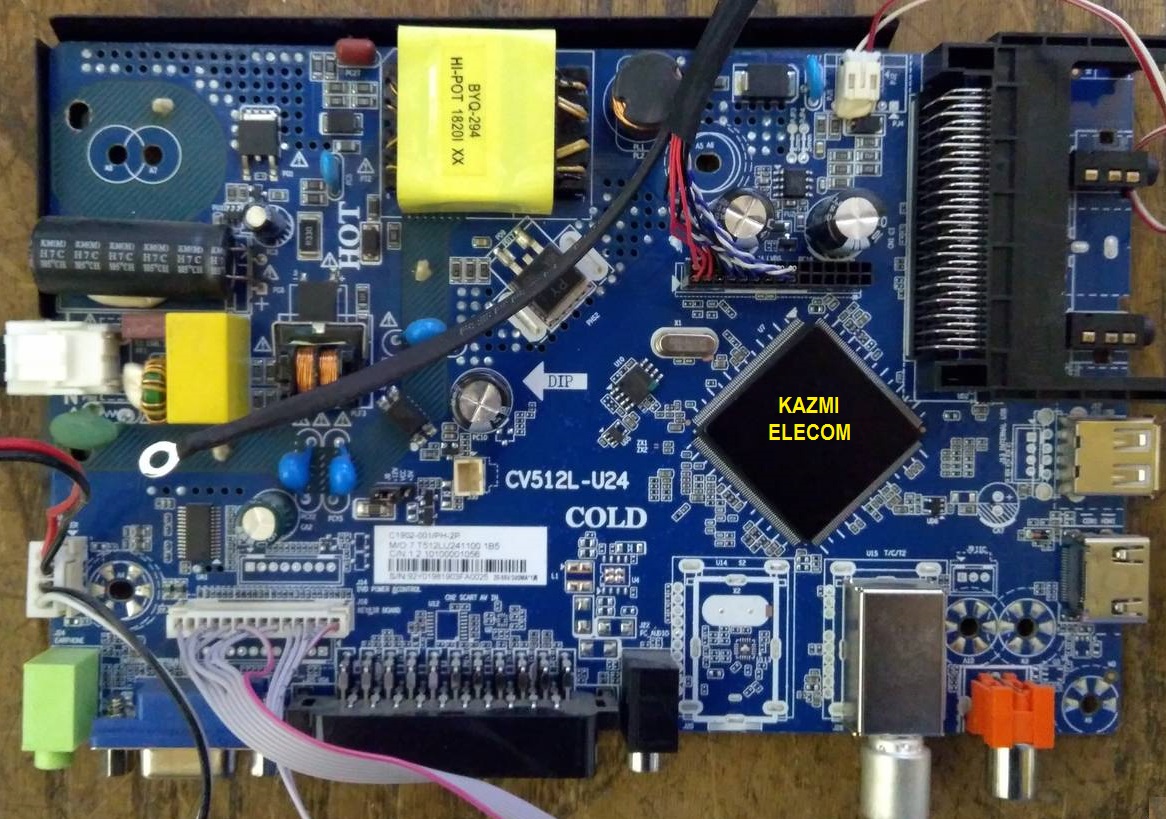

CV512L-U24 LED TV Board
CV512L-U24 is a simple ATV Driver Motherboard designed for LCD/LED TVs. It is suitable for the Asia Pacific and Middle East markets. CV512L_U24 is a Combo Board. The main power module, LED Backlight Inverter Circuit module, and ATV Card are built into this motherboard. CV512L U24 has all the features as per the latest requirements, like HDMI input, USB interface, PC input, Component Input, TV, and Scart.
CV512L-U24 firmware files are given below for the technician’s support.
General Specifications:
Brand/Mark: Universal Board
Model: CV512L-U24
Main Chip:
Product: LED TV
LED Backlight: NA
Flash IC: 8Mb
Screen supported: 15-26 inch
Resolution: Up to 1920×1080
Panel Voltage: 5V, 12V
Power Input: 220V AC
Service Code:
Source/Input+2580
Note: The following firmware is a backup file. Kazmi Elecom Team is not responsible for any type of damage/loss as a result of uploading/downloading the firmware. If you are new and do not have enough knowledge of loading or installing software/firmware or dump files then read here first.
How to Download Firmware Files:
Download all parts of the following firmware and then extract any one of them you will get the folder. Now copy the files to USB. For more Details about the download process watch the video Click Here
CV512L-U24 firmware for free download:
S.NO. BOARD/DESCRIPTION DOWNLOAD LINK
1 CV512L-U24_1366X768_AGHILAS_Dump Download
2 CV512L-U24_1366X768_DEXP_Dump Download
3 CV512L-U24_1366X768_TELEFUNKEN_Dump Download
4 CV512L-U24_1366X768_USB Download
