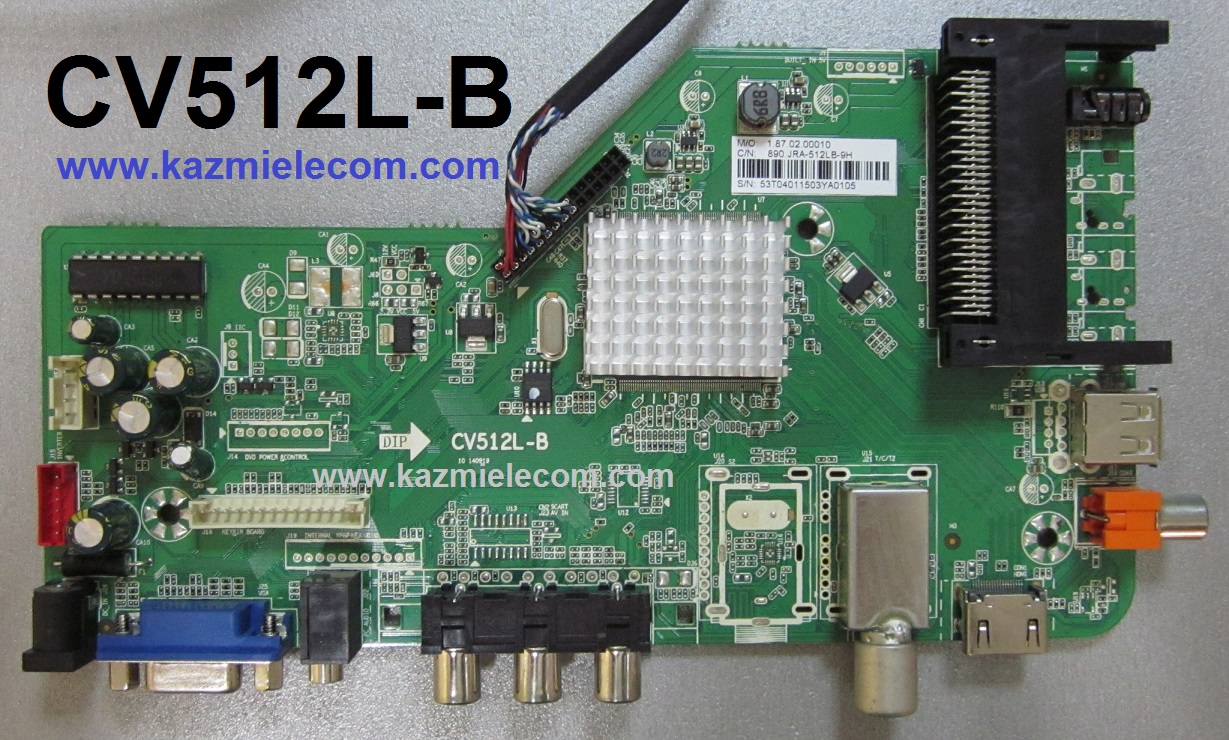

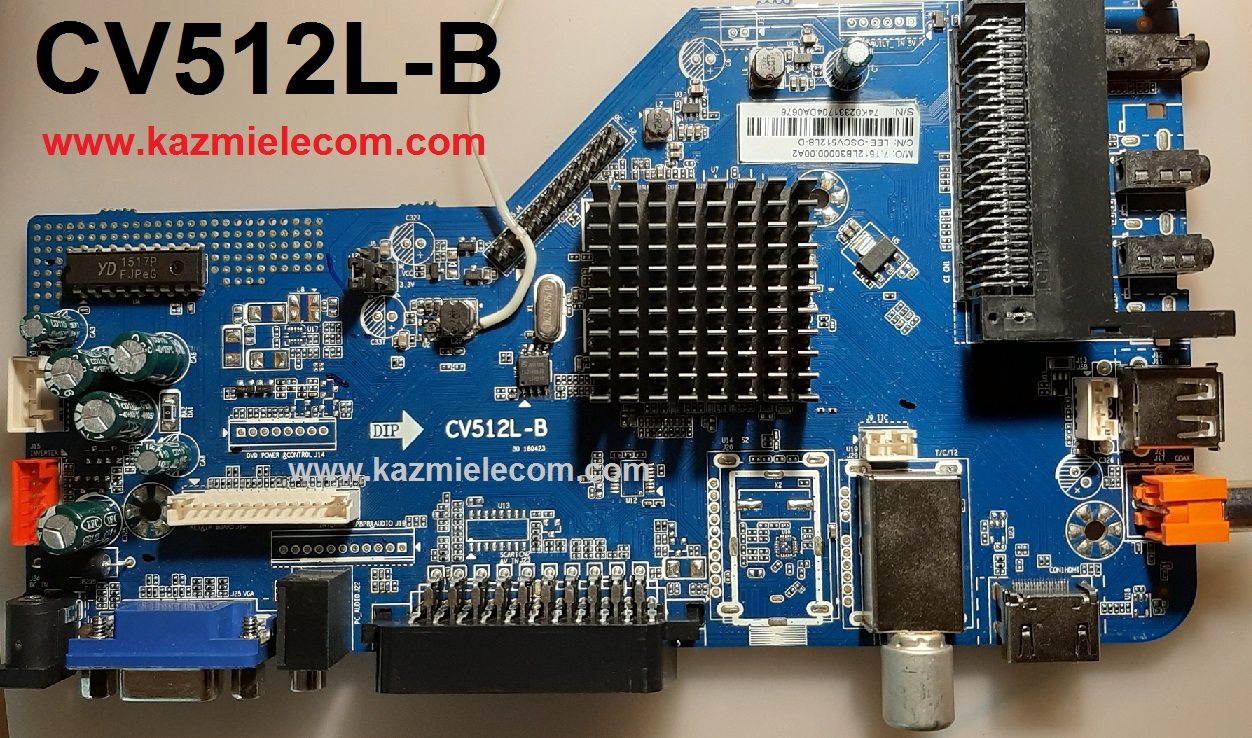

CV512L-B LED TV Board
CV512L-B is a simple ATV Driver Motherboard designed for LCD/LED TVs. CV512L.B board is suitable for the Asia Pacific and the Middle East markets.CV512L_B is a Non-Combo Board. The main power module and LED Backlight Inverter Circuit module are required separately to complete the setup and ATV Card is builtin into this motherboard. CV512L B has all the features as per the latest requirements like HDMI input, USB interface, PC input, Component Input, TV, and Scart.CV512L-B firmware files are given below for the technician’s support.
General Specifications:
Brand/Mark: Universal Board
Model: CV512L-B
Main Chip:
Product: LED TV
LED Backlight: NA
Flash IC: 8Mb
Sound IC: 1517P
Screen supported: 15-28 inch
Resolution: Up to 1920×1080
Panel Voltage: 3.3V, 5V, 12V
Power Input: 12V DC
Firmware Name: S2_EU.code
Service Code:
Source/Input+2580
Note: The following firmware is USB bootable and dumps backup files. Kazmi Elecom Team is not responsible for any type of damage/loss as a result of uploading/downloading the firmware. If you are new and do not have enough knowledge of loading or installing software/firmware or dumping files then read here first.
How to Download Firmware Files:
Download all parts of the following firmware and then extract any one of them you will get the folder. Now copy the files to USB. for More Detail about the download process watch the video Click Here
Here are below some CV512L-B firmware for free download:
| S.NO. | BOARD/DESCRIPTION | DOWNLOAD LINK |
|---|---|---|
| 1 | CV512L-B_1366X768_DEXP_DUMP | Download |
| 2 | CV512L-B_1366X768_HARPER_DUMP | Download |
| 3 | CV512L-B_1366X768_RUBIN_DUMP | Download |
| 4 | CV512L-B_1920X1080_BBK_DUMP | Download |
| 5 | CV512L-B_1920X1080_DEXP_DUMP | Download |
| 6 | CV512L-B_1920X1080_DOFFLER_DUMP | Download |
| 7 | CV512L-B_1920X1080_ERISSON_DUMP | Download |
| 8 | CV512L-B_1920X1080_RUBIN_USB | Download |
| 9 | CV512L-B_1920X1080_SUPRA_DUMP | Download |
