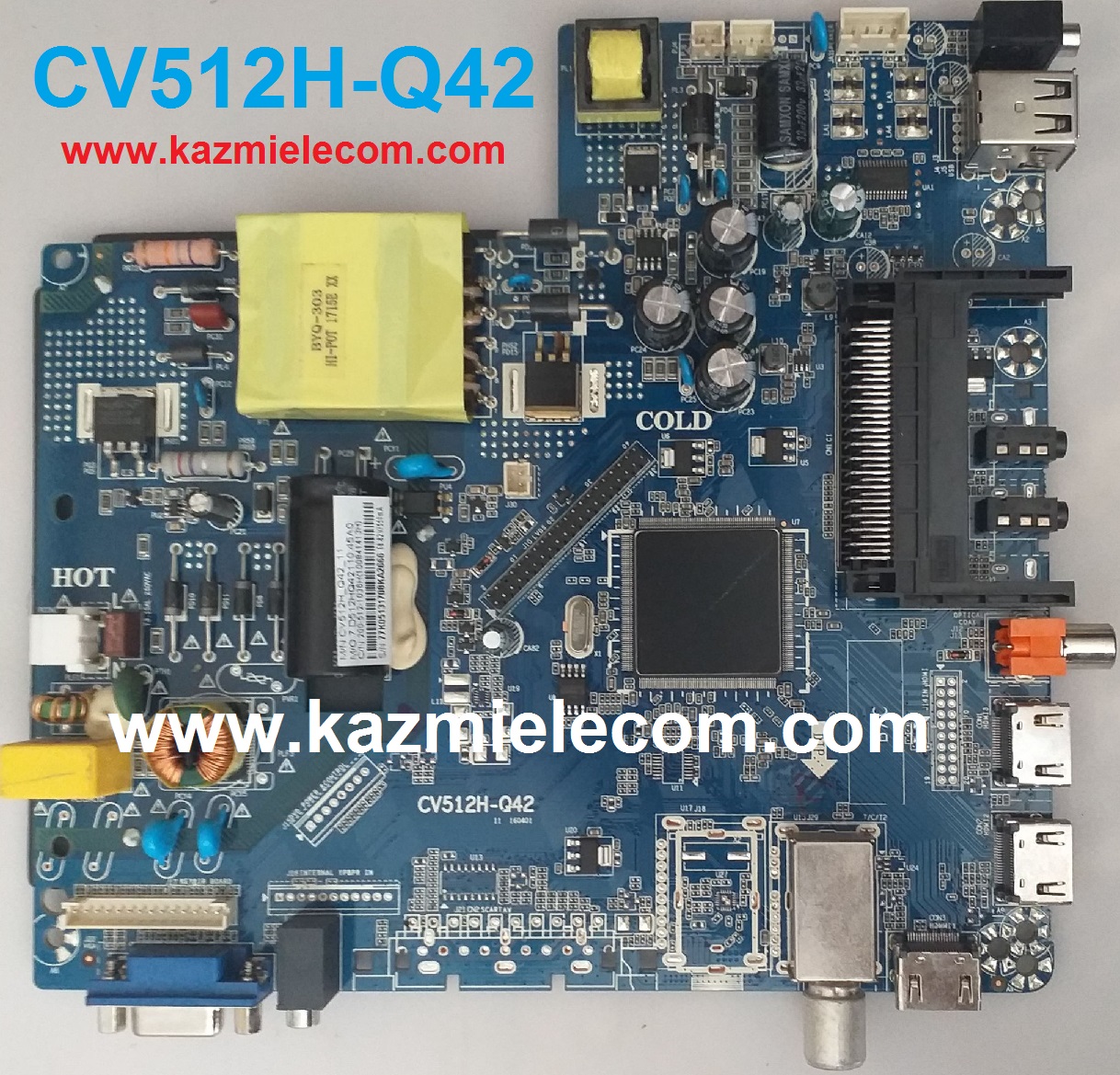

CV512H-Q42 LED TV Board
CV512H-Q42 is a simple ATV & DTV Driver Motherboard designed for LCD/LED TVs. CV512H.Q42 board is suitable for the Europe, Asia Pacific and the Middle East markets.CV512H_Q42 is a Combo Board. The main power module and LED Backlight Inverter Circuit module and ATV Card are builtin into this motherboard. CV512H Q42 has all the features as per the latest requirements like HDMI input, USB interface, PC input, Component Input, TV, and Scart.CV512H-Q42 firmware files are given below for the technician’s support.
General Specifications:
Brand/Mark: Universal Board
Model: CV512H-Q42
Main Chip:
Product: LED TV
LED Backlight: 63~82V
Backlight Current: 550mA
Flash IC: 8Mb
Screen supported: 28-42 inch
Resolution: Up to 1920×1080
AUDIO: RDA3118E28
Tuner Type: ATV and DTV (DVB-T MPEG4, DVB-C, DVB-T2, DVB-S2)
Tuner: CDT-9NT372-RD60 & CDT-9NS161-RD41
Panel Voltage: 5V, 12V
Power Input: 220V AC
Memory: 8Mb SPI Flash
Service Code:
Source/Input+2580
Note: The following firmware is a backup file. Kazmi Elecom Team is not responsible for any type of damage/loss as a result of uploading/downloading the firmware. If you are new and do not have enough knowledge of loading or installing software/firmware or dump files then read here first.
How to Download Firmware Files:
Download all parts of the following firmware and then extract any one of them you will get the folder. Now copy the files to USB. for More Detail about the download process watch the video Click Here
CV512H-Q42 firmware for free download:
| S.NO. | BOARD/DESCRIPTION | DOWNLOAD LINK |
|---|---|---|
| 1 | CV512H-Q42_1366x768_AKAI_DUMP | Download |
| 2 | CV512H-Q42_1366x768_GALATEC_DUMP | Download |
| 3 | CV512H-Q42_1366x768_HARPER_DUMP | Download |
| 4 | CV512H-Q42_1366x768_SHIVAKI_DUMP | Download |
| 5 | CV512H-Q42_1366x768_SUPRA_DUMP | Download |
| 6 | CV512H-Q42_1920x1080_DEXP_DUMP | Download |
| 7 | CV512H-Q42_1920x1080_DOFFLER_DUMP | Download |
| 8 | CV512H-Q42_1920x1080_SHIVAKI_DUMP | Download |
| 9 | CV512H-Q42_1920x1080_STARSAT_DUMP | Download |
| 10 | CV512H-Q42_1920x1080_SUPRA_DUMP | Download |
| 11 | CV512H-Q42_1920x1080_TELEFUNKEN_DUMP | Download |
