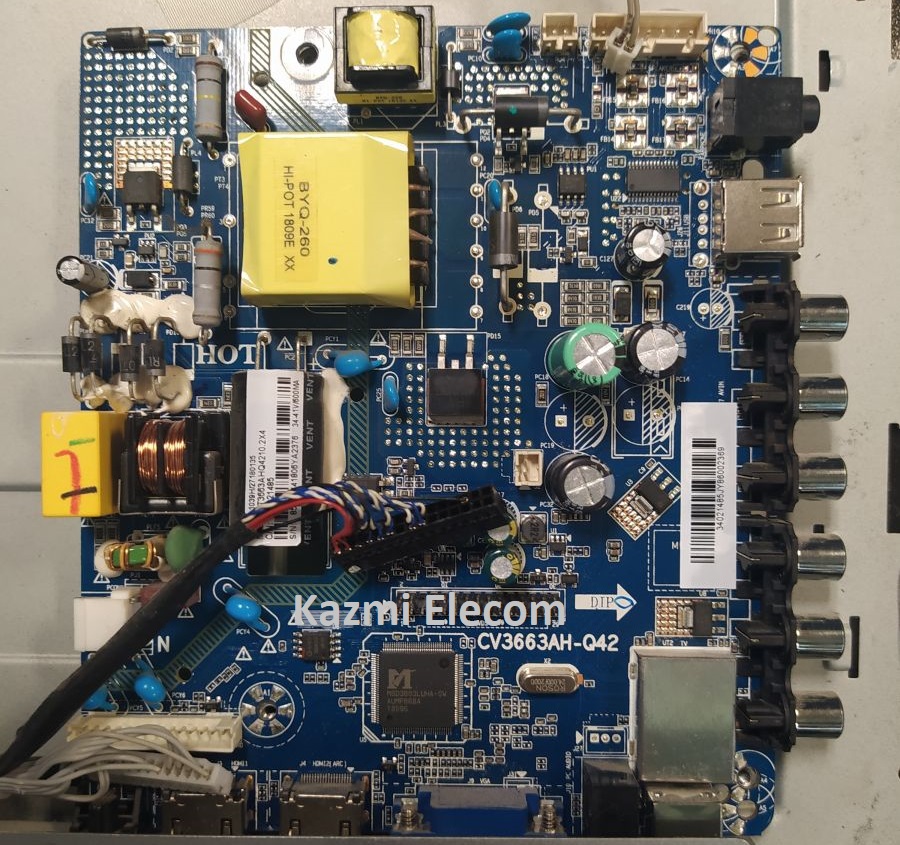

CV3663AH-Q42 LED TV Board
CV3663AH-Q42 is a simple ATV Driver Motherboard designed for LCD/LED TVs. It is designed to support Full HD LCD/LED Panel Screens. This board is suitable for the Asia Pacific and the Middle East markets. This is a three-in-one Combo Board. The main power module, LED Backlight Inverter Circuit module, and ATV Card are built into this motherboard. This board has all the features and connectivity ports as per the latest user requirements like HDMI input, USB interface, PC input, Component Input, TV, and Scart. Its USB interface can be used for updating software/firmware and for playing multimedia files as well. It can also support Earphone output. CV3663AH-Q42 firmware files are given below for the technician’s support.
General Specifications:
Brand/Mark: Universal Board
Model: CV3663AH-Q42
Main Chip: MSD3663LUHA
Product: LCD/LED TV
Backlight Voltage: 34-41 V
LED Backlight: 600mA
Flash IC: 8Mb
Sound Chip: NA
Tuner IC: NA
Screen supported: 32-inch
Resolution: Up to 1920×1080
Panel Voltage: 5V, 12V
Power Input: 220V AC
Firmware Name: NA
Firmware Type: Backup Dump
Service Code:
Source/Input 2580, Menu 1147
Note: The following firmware is a backup file. Kazmi Elecom Team is not responsible for any type of damage/loss as a result of uploading/downloading the firmware. First, check and verify the main board then install software. If you are new and do not have enough knowledge of loading/installing software/firmware or dump files, or facing any issues during firmware installation then visit and read here first.
How to Download:
Download your required resolution firmware/software and then extract it, you will get the folder. Now copy the files to USB or write flash by a programmer. For more Details about the download process watch the video Click Here
CV3663AH-Q42 firmware for free download:
For video tutorials, visit “Kazmi Elecom” my YouTube channel.
