CV358H-A50 Firmware

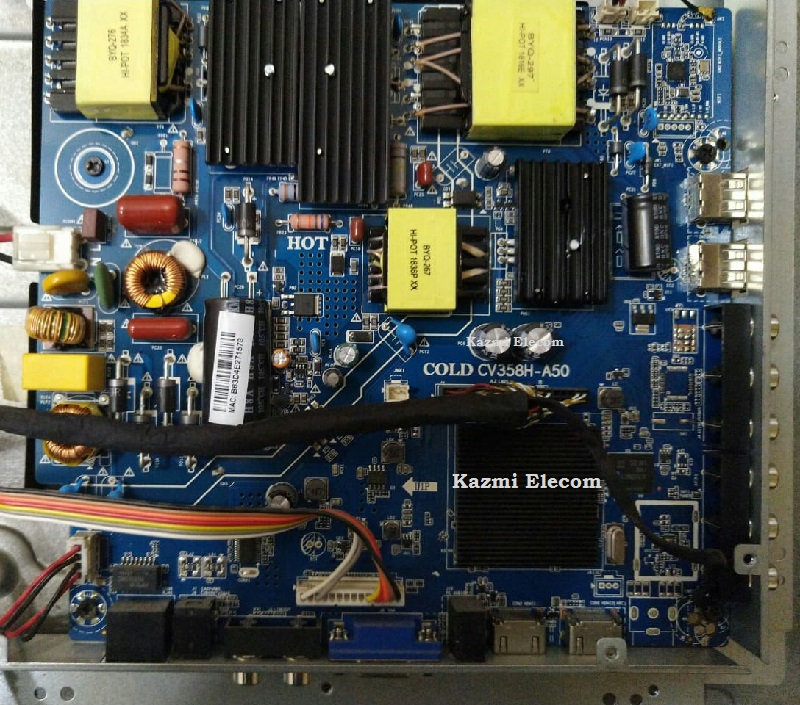

CV358H-A50 is an Android network driver board with an FHD resolution of 1920×1080. CV358H_A50 has a powerful wifi system. Smart FHD TV With Android Platform and great features to entertain Full HD Wide Screen with better to work SMART. CV358H A50 Smart Board has multiple ports A/V, USB interface Ports, and many HDMI ports as well in addition to the VGA interface for computers. CV358H.A50 has a LAN/RJ45 Connector interface port also for the wired internet network.
CV358H-A50 is a Combo Network Triple play board that has a Digital TV tuner built-in in it. The Graphics and Sound quality of the CV358H_A50 Android board are very good and the Response rate is very efficient. CV358H-A50 China smart network board can support up to 55″ screen panels. CV358H-A50 firmware is available for technician support.
General Specifications:
Brand/Mark: LCD/LED Main Board (Android WIFI Network Drive Board)
Main Board: CV358H – A50
OS: Android 4.4
CPU: Dual Core
Back Light V/C : 65v-80v 560MA
Ram: 1Gb
Rom: 8 Gb eMMC
Resolution: up to 1920×1080
Firmware: CtvUpgrade.bin
Firmware Type: USB Updateable Firmware
Note: The following given firmware is USB upgradeable. Kazmi Elecom Team is not responsible for any type of damage/loss as a result of uploading/downloading the firmware. If you are new and do not have enough knowledge of loading or installing software/firmware or dump files then read here first.
How to Download:
Download all parts of the following given firmware and then extract any one of them you will get the folder. Now copy the files to USB. for More Detail about download process watch the video Click Here
How to Load Software:
- Transfer the required resolution file into USB Disk
- Plugin the USB Disk into Main Board
- Keep Pressing the Standby/Power button and Power on the board
- Wait until the red light starts flashing
- Note: USB file must be the name of “CtvUpgrade.bin”
CV358H-A50 firmware for free download:
sir link 2 me jo part 1 or part 4 me file h us me error aatta h
please resolve it
Thanks dear me update kar deta hon
cv358ha50
Sir ye CV338H-A50 ki file he
Plz original CV358H-A50 daalye
Afzal khan bhai mujhe help kar den cv358h 50 pe firmware kaise hoga
software kion karna chahte hen??
slam sir cv358h-a50 aging mode main chala gia ha jo aap ne tareeqa btaya us se masla hal nahi ho raha aur softwre ki pehli 5 file download hoi hai baqi nahi ho rahi
ager koi tareeqa btaa dain tu aap ka buhat mamnoon honga tha a lot 03336893855 mera whatsapp hay ager possible ho tu file whatsap ker dain
Sir I have this card cv358h-a50 in my led tv .today when I change prm switch setting 1920 resolution to 3840 in service manu since then tv is not booting up.when power on red light lit,by pressing power button from remote or from tv ,blue light lit ,backlight also ON ,but no display or logo.
Pls help what could be solution ? Thanks in advance
hard reset to recovery mode or reload software
sir ye wrong file hai board dead ho jata hai,mere paas cv358h-b42 ka file hai 1.5 gb ka hai wo file chalta hai sound nahi aata hai
dead se kia murad hy??? display nai banta ya board on nai hota. au ap k pas jo file hy woh share karen ((kazmielecom@gmail.com))
stb light nahi aati hai aur na hi on hota hai board
power aur voltage verify karen
j ai mis le firmware cv358H A50 le chargement n a pass atteint 100 pourcent ma teele reste bloqué sur stand by que faire
smart boards always stuck on logo due to software issue. if it is on standby then it means some hardware issue
sir i sent you my tv problem on your email kazmielecom@gmail.com
video and photo both,,please share me solution sir
post on the forum page
Cv358-a50 ki emmc pinouts nahi mil rahi web site 0ar
mere pas nai hy is board ka
Sir. Can I flash Samsung software in iconic…. Same resolution which is cv358h-a50 software…
No
CV358H-A50 board ko recover krna he to bin file ka name kya rkhe???, CtvUpgrade name rakha to error aa raha he…
recover se kia murad hy agar board dead hy tp phir jtag karna hoga ya pehly mboot file write karen
sir
An error occurred during the update and now the device does not turn on and just red light
please helpppppp me
🙁
try again by changing usb disk
icant upgrade because the device is not to run (with remot controller or power button) i changing the usb disk but the device does not allow try again
power led is red light and not to run
What is your solution?
load mboot file by mstar bin tool then try again by loading firmware
Hello sir please send JVC 43 smart TV software
Model- LT-43N5105C
Motherboard – cloud CV358H-A50
not available for JVC
Hi,
My JVC LT-43N5105C (MB – CV358H-A50) stuck on with logo and turn off in 15secs. Tried to upgrade with downloaded firmware from your site but on mid way display turned off and TV is dead now.
Kindly suggest any options.
several methods are shared on youtube for recovery. get idea
aslam o alaikum sir koi bi resolution download krre k bad extract krne me error a raha hai ..likha ata hai you need to have the following volume to continue ertraction
w.salam all parts download karen
sir mera akai ka 43 inch ka led tv me cv358h-a50 bord he konsa softwear hoga
software karne ki zarorat nai reset kar len
Hi sir mere vise 43inch smart tv hai use mein cv358h-a50 ka board hai.galat software ke wajese tv pr sirf red light dikha raha hai aur na remote se on ho raha hai aur na Power button se on ho raha. pls sir koi solution batao
local technician pe visit karen
assalamu alaikum bhai,
mera JVC 49inch ka tv he. logo pe hang reh k band ho jata he. 1gb and 8gb wala model he. to aapne jo samsung wala file diya he kya wo usme kaam krega. board ka number bhi match kr rha he.
w.salam dear ap isko pehly hard reset ki try karen
hi my Friend…tanks for your file’s software..
my board cv358h-a50 for maser50″ when i tryed to upgrade in 1% say:upgradeing error!!
why?
and what is Meaning frome: LLOYD and CONIC and samsung in softwore??
its mean ram/rom mismatch. other are brands name as remote and logo will be
tanks so match….
i flashed cv358h-a50-1920×1080-CONIC file .and worked without Erorr.but remote control Not working!
how can setup my remote on new rom?
tanks
IF YOU HAVE IR CONFIG FILES THEN YOU CAN LOAD OTHERWISE USE UNIVERSAL REMOTE CONTROL
tanks…why in CONIC version ony has ATV!! i can not find DTV in menu..plase guide me…
if the board have the feature then change software
please help me for software update of JVC 109 cm (43 inch) Full HD LED Smart TV (LT-43N5105C)
Na
hello, this board support digital tv (dtv) but there is no dtv in the input menu, there is just atv (analoge tv) in that. what should i do?
if you sure then change the software
im not sure but you said cv358H-a50 has a Triple play board that has the digital TV tuner built-in in it at top of this page.
the mostly android smart board has DTV tuner
thanks, now samsung is installed, should i download samsung from here and re-install it?
No need
i have this problem too for this board. if no need too re-install so what should we do for use DTV sir??!
change the software at your own risk
hello sir 1- is this board support h265 videos?
2- is it support DVB-T2 ?
not confirm. search google
hello
what do you mean of change software? which software should i change to see DTV in the input menu?
if the tuner is DTV supported then you can change software otherwise change board
sir mene cv358h-a50 ka software download kia he.pr jab me tv me usb install kr k onn krta hn to firmware upgrade error aa ajata he
https://www.kazmielecom.tech/how-to-load-firmware/
plz send me link softwear cv358h a50
