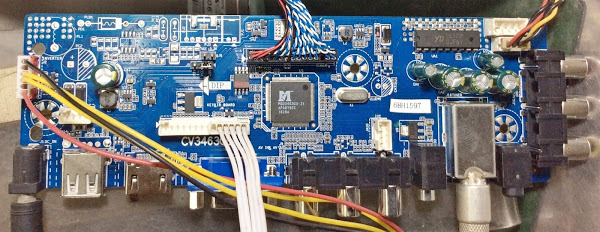

CV3463GL-X Universal DVB-T2 TV Board
CV3463GL-X is a high-definition digital TV (DVB-T2) board that supports up to 1920×1080 resolution screens and according to screen sizes CV3463GL-X can support LCD screens 15 to 55 inches. CV3463GL-X is the best tv board that has all the features and ports according to future requirements. It has Full-automatic RF, video, and audio format automatic detection. Its USB playback function Supports regular music (MP3 format) and video (.RM.RMVB.mp4.dat format) file playback.
General Specifications:
Model No. CV3463GL-X
Main chipset: MSD3463GU-Z1
Panel voltage: 3.3V/5V/12V (jumping cap setting)
Input Supply voltage: 12V DC
Input interface: HDMI, VGA, AV video, USB media player interface, TV interface
Video Format: PAL, NTSC, SECAM
Audio output: 4 ohms 3W (can support 8 ohms 2W, 6 ohms 2W, 4 ohms 2W, 4 ohms 3W speakers)
HDMI Protocol: up to HDMI1.4 standard
Screen Size Supported: 15-55 inch
Resolution: 1920×1080 Maximum
USB2.0 current: 500mA maximum
Service Menu Code:
Source 2580
Note: The following given software/firmware is USB upgradeable. Kazmi Elecom Team is not responsible for any type of damage/loss as a result of uploading/downloading the firmware. If you are new and do not have enough knowledge of loading or installing software/firmware or dump files then read here first.
How to Download:
Download all parts of the following given firmware/software and then extract any one of them you will get the folder. Now copy the files to USB. for More Detail about the download process watch the video Click Here
Here are below some CV3463GL-X firmware for free download:
| S.NO. | BOARD/DESCRIPTION | DOWNLOAD LINK |
|---|---|---|
| 1 | CV3463GL-X_Software.part1 | Download |
| CV3463GL-X_Software.part2 | Download |
