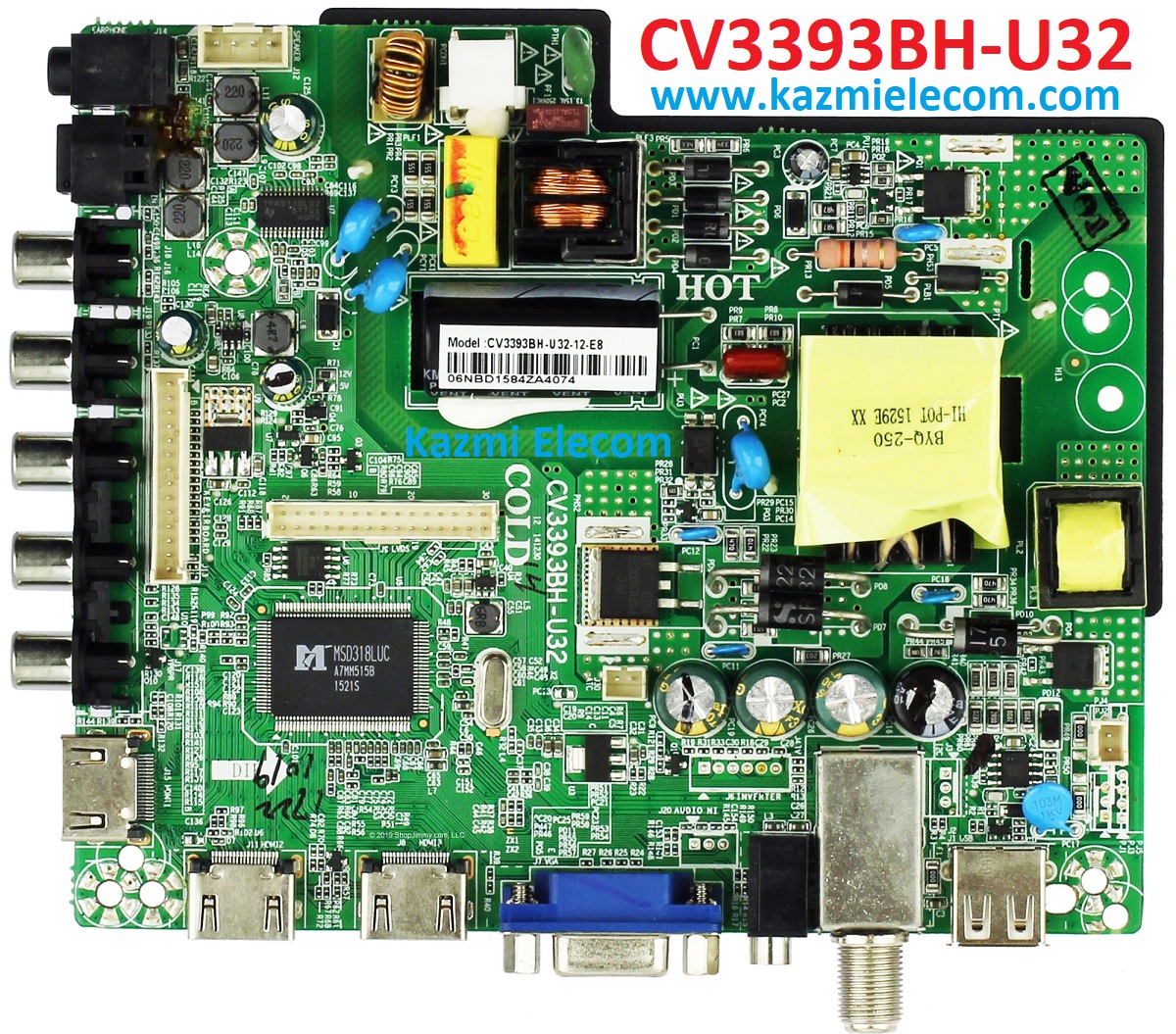

CV3393BH-U32 LED TV Board
CV3393BH-U32 is a simple ATV Drive Board designed for LCD/LED TVs. This Board is suitable for the Asia Pacific and the Middle East markets. This Combo Board has the integration of the main power module, LED Backlight Inverter Circuit, and ATV Card in a single piece of a motherboard. This has all the features as per the latest requirements like HDMI input, USB interface, PC input, Component Input, TV, and Headphone jack. CV3393BH-U32 is compatible with all panel screens of backlight current 350mA-600mA depending on hardware specifications. CV3393BH.U32 firmware files are shared in this post below for the technician’s support.
General Specifications:
Brand/Mark: Universal HD Three-in-One Board
Model: CV3393BH-U32
Main Chip: MSD318LUC
Product: LED TV
LED Backlight Capacity: 300-350mA
LED Backlight: 72~79V
Flash IC: 2/4Mb
Screen supported: 32-65 inch
Resolution: Up to 1920×1080
Panel Voltage: 12V
Power Input: 220V AC
Tuner:
Mirror Option:
Service Code:
Input
Note:
The following given Software is a backup Dump and can be written by a programming tool. Kazmi Elecom Team is not responsible for any type of damage/loss as a result of uploading/downloading the firmware. First Check the mainboard and then install the software. If you are new and do not have enough knowledge of loading or installing software/firmware or dump files then read here first.
CV3393BH-U32 firmware for free download:
For video tutorials, visit “Kazmi Elecom” my YouTube channel.
