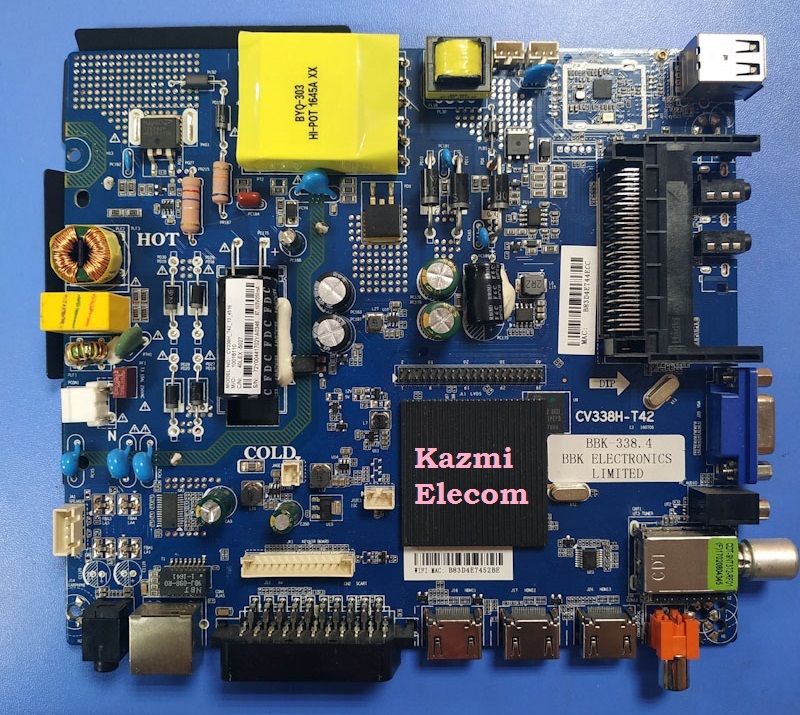

CV338H-T42 4K LED Board
CV338H-T42 is an Intelligent 4K network driver board with a UHD resolution of 3840×2160. It is dedicated to 50, 60, and 120 Hz screens. CV338H_T42 has a powerful wifi system. Smart UHD TV With Android Platform and great features to entertain ultra HD Wide Screen with better to work SMART. CV338H T42 4K Smart Board has multiple ports of A/V, USB interface Ports, and many HDMI ports as well in addition to VGA and Headphones also.
CV338H-T42 has a LAN/RJ45 Connector interface port also for the wired internet network. CV338H-T42 is a Combo Network Triple play board that has the Digital TV tuner built-in in it. The Graphics and Sound quality of the CV338H-T42 android board are very good and the Response rate is very efficient. CV338H-T42 china smart network board can support up to 65″ screen panels.
General Specifications:
Model Name: CV338H-T42 (4k Smart UHD Android Board)
Main Chipset: CV338H
Resolution: 3840*2160
Aspect Ratio: 16:09
OS Version: Android 4.4
CPU: Dual Core
Ram: 1GB
Rom: 4GB/8GB
Audio Power Output: 16w (8×2)
System: PAL/SECAM
WIFI Antenna: Yes (Built-in)
Mirror: Yes
DLNA/Miracast: Yes
PC Compatible: Yes (via HDMI/VGA)
TV Tuner Input: 1
Digital Tuner: DVB-C, DVB-T, DVB-T2
HDMI: 3 ( HDMI1.4 *1, HDMI2.0 *2 )
AV IN: Mini AV
USB Ports: USB2.0 *2
Power Rating: 100V~240V 50Hz/60Hz
Power Consumption: 140Watt
Note: The following given firmware is USB upgradeable. Kazmi Elecom Team is not responsible for any type of damage/loss as a result of uploading/downloading the firmware. If you are new and do not have enough knowledge of loading or installing software/firmware or dump files then read here first.
How to Download:
Download all parts of the following given firmware and then extract any one of them you will get the folder. Now copy the files to USB. for More Detail about the download process watch the video Click Here
How to Install:
- Unzip/Extract the firmware
- Copy the CtvUpgrade.bin file to the USB disk
- Connect USB with Mainboard
- Keep pressing the Standby button on the TV and Switch ON the TV
- Done
Here is below CV338H-T42 Firmware for free download:
Firmware Name:
T201712209A-CNC-MarJane-338H-T42-EMMC8G-HV320WHB-N8B-350MA-5KEY-MO10024385-20180106204006
T201711006A-CNC-MarJane-338H-T42-HV430FHB-N10-550MA-MO10023102-20171122201451
WEIYUE-STREAM-338H- the T42-T430QVN01_2-540MA-ALGERIA- the SS-2016-12-26-2057_MO18000413_NOFAC
Yingshi-BBK-21006395-32DK1-338H-T42-ST3151A04-570MA-RUSSIA-1G-4G-MO10023371-2017-11-28-175338
HKC_ANDROID_CV338H-T42_1G_4G_1366X768_560mA_700maMaxLevel_EAR_PHONE_ (MO10018388) 20170518102921_32C1NB_SUPRA_K83IR
Im looking for firmware dump upgrade for StarLight 40DM6500 CV338H-T42 Panel CX400DLEDM
inves firmware works perfectly, proginal remote works also
hello
kazmi I need emmc files for CV338H-T42 AKAI AKTV4027
and emmc pinout for RT809H…
AKAI backup is not available
Thank you for th help
use Inves one works perfectly on this particular tv with the oroginal remote control.
Sir I want cv338h-a42 8gb 1366*768 samsung update firmware
update not available
Can someone please help me ? I have a Silver TV Model: IP-LE410005. It has the CV338H_T42 board with T390XVN02.0 Panel but i cant find a firmware for it. I dont know what to do.
if you want to update only then no need to update. if software issue then you can load any software according to panel resolution of same board and after it you can change the Logo and Remote by usb but if you have your brand IR file
Dove posso trovare i file x il telecomando?
https://www.kazmielecom.tech/category/customer-config-files
Hello. For AKAI AKTV4025T SMART missing part 5. please send it .thanks Alqi.
Noted. it will be updated soon.
thanks.
Szeretném megvásárolni a CV338H-T42 alaplapot.Hogyan működik
better
Hello after a firmware update my cv338h-t42 board no longer leaves st-by. Buttons no longer respond to commands. You can help me with an Emmc dump. Panel V400HJ6-PE1, nand KLM8G1GEME processor MSD6A338SXG. Thank you
try another software with usb disk
can I force update stick with rt809H?
emmc backup file is required to rewrite
I recovered the files and rewrote Emmc but it still doesn’t leave st-by.
If the Boot1 and Boot2 files are corrupt they should not be replaced with others
please can’t find the new graetz GR32E3300SA tv firmware
not available in this brand. no need to load firmware it stuck on the logo just enter recovery mode and reset to factory default
Boas.
Como se entra no modo de recuperação?
Obrigado
https://www.kazmielecom.tech/category/document/how-to-reset-lcd-led-tv
TV SILVER ip le 493413 liga, aparece o logotipo e desliga de seguida. Como fazer ara recuperar a tv?
Obrigado
https://www.kazmielecom.tech/category/document/how-to-reset-lcd-led-tv
watch the video tutorial in the post. rename the file to CtvUpgrade.bin and load it by USB
N ustiu daca e bun sau nu?
no need to load software just load the recovery file and restore it to original
Hi ser ineed dump cv338h-t42
Thank you sir
Hi Sir I need software of the model General Gold SL.358A.PB801
thank you
NA
Hello
I used the wrong software version and now it doesn’t leave standby. I have USB power but it doesn’t want to read other updates.
Is there another method to unlock it?
by programer. better to visit a technician
Inves files are deleted…
links replaced
necesito este firmware para un tv RCA modelo RC32G16N-SM
No need to load firmware. just factory reset. follow the video in the below link:
https://www.kazmielecom.tech/2020/03/21/how-to-reset-smart-tv.html
