CV338H-D42 Firmware

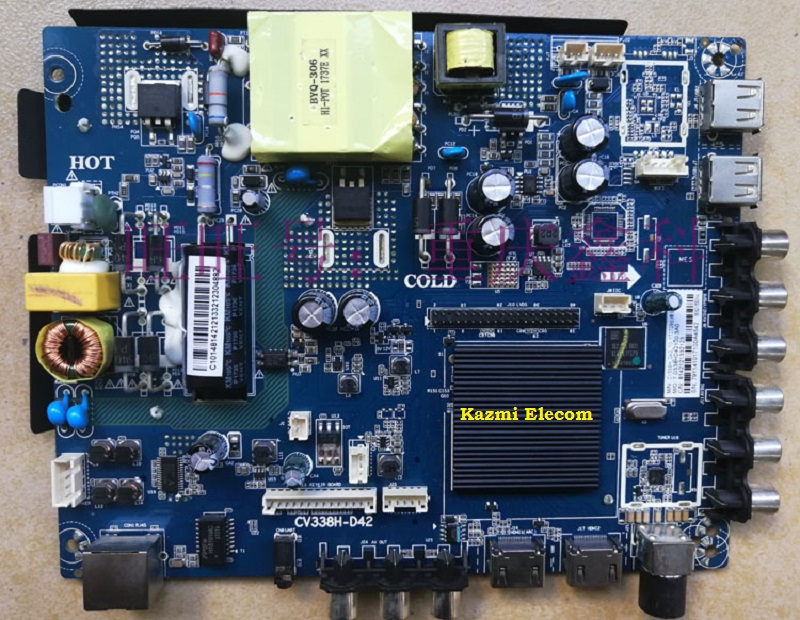

CV338H-D42 Network Android Smart LED TV Board
CV338H-D42 is an android network driver board with an FHD resolution of 1920×1080. CV338H_D42 has a powerful wifi system. Smart FHD TV With Android Platform and great features to entertain Full HD Wide Screen with better to work SMART. CV338H D42 Smart Board has multiple ports of A/V, USB interface Ports, and many HDMI ports as well in addition to VGA, Scart and Earphones also. CV338H.D42 has a LAN/RJ45 Connector interface port also for the wired internet network.
CV338H-D42 is a Combo Network Triple play board that has the Digital TV tuner built-in in it. The Graphics and Sound quality of the CV338H_D42 android board are very good and the Response rate is very efficient. CV338H-D42 china smart network board can support up to 55″ screen panels. CV338H-D42 firmware is available for technician’s support.
General Specifications:
Brand/Mark: Culture View Universal Android WIFI Smart Board
Main Board: CV338H-D42
Main Chipset: MSD6A
OS: Android 4.4
CPU: Dual Core
Back Light V/C : 65v-96v 600mA
Ram: 512Mb
Rom: 4 Gb eMMC
Resolution: up to 1920×1080
Tuner: ATV&DVBT
Firmware: CtvUpgrade.bin
Firmware Type: USB Updateable Firmware
Note: The following given firmware is USB upgradeable. Kazmi Elecom Team is not responsible for any type of damage/loss as a result of uploading/downloading the firmware. If you are new and do not have enough knowledge of loading or installing software/firmware or dump files then read here first.
How to Download:
Download all parts of the following given firmware and then extract any one of them you will get the folder. Now copy the files to USB. for More Detail about download process watch the video Click Here
Service Code:
Menu+1147
How to Load Software:
- Transfer the required resolution file into USB Disk
- Plugin the USB Disk into Main Board
- Keep Pressing the Standby/Power button and Power on the board
- Wait until the red light starts flashing
- Note: USB file must be the name of “CtvUpgrade.bin”
Here are below some CV338H-D42 firmware for free download:
| S.NO. | BOARD/DESCRIPTION | DOWNLOAD LINK |
|---|---|---|
| 1 | CV338H-D42_1366x768_512M_4G_USB.part01 | Download |
| CV338H-D42_1366x768_512M_4G_USB.part02 | Download | |
| CV338H-D42_1366x768_512M_4G_USB.part03 | Download | |
| CV338H-D42_1366x768_512M_4G_USB.part04 | Download | |
| CV338H-D42_1366x768_512M_4G_USB.part05 | Download | |
| 2 | CV338H-D42_1366x768_512M_4G_COOCAA_USB.part01 | Download |
| CV338H-D42_1366x768_512M_4G_COOCAA_USB.part02 | Download | |
| CV338H-D42_1366x768_512M_4G_COOCAA_USB.part03 | Download | |
| CV338H-D42_1366x768_512M_4G_COOCAA_USB.part04 | Download | |
| CV338H-D42_1366x768_512M_4G_COOCAA_USB.part05 | Download | |
| 3 | CV338H-D42_1366x768_512M_4G_COOCAA_eMMC.part01 | Download |
| CV338H-D42_1366x768_512M_4G_COOCAA_eMMC.part02 | Download | |
| CV338H-D42_1366x768_512M_4G_COOCAA_eMMC.part03 | Download | |
| CV338H-D42_1366x768_512M_4G_COOCAA_eMMC.part04 | Download | |
| CV338H-D42_1366x768_512M_4G_COOCAA_eMMC.part05 | Download |
Firmware:
T201709123A-CNC-CoocaaOs-338H-D42-LC390TU1A-550MA-20170908185439, eMMc backup For PANDA LC390TU1A, 1366 × 768
T201709123A-CNC-CoocaaOs-338H-D42-LC390TU1A-550MA-20170908185439, Firmware For PANDA LC390TU1A, 1366 × 768
T201708078A-CNC-CoocaaOs-338H-D42-HV320WHB-N55-600MA-20170828150556
Does cv338h-d42 works on 49 inch panel c490f14-e1-l
yes it will work but it depends on the backlight of panel and board capacity
