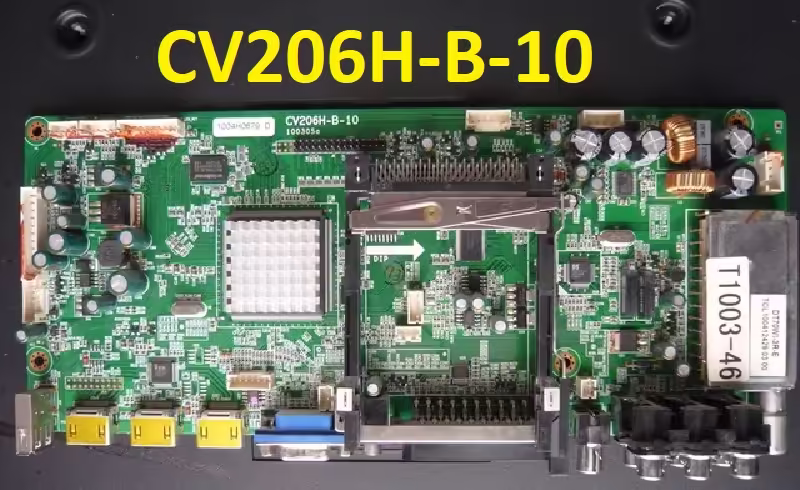

CV206H-B-10 LED TV Board
CV206H-B-10 is a simple ATV driver motherboard for LCD/LED TV. This board is suitable for Asia Pacific and Middle East market. It is designed to support full HD LCD/LED screens. This is a non-combo board. ATV card is integrated into this motherboard while a power input module and LED backlight inverter driver circuit module are required separately for a complete setup. This board has all the features and connection ports that comply with the latest requirements such as triple HDMI input ports, USB interface, PC input (VGA), component input, TV, and Scart. The
USB interface can be used for software/firmware updates and playing multimedia files. Headphone output is also supported. CV206H-B-10 is a full HD LCD LED TV controller board with a maximum resolution of 1920 x 1080. It supports 26-30 inch HD and FHD screens. The main processor is from Mstar and has good graphics. To assist technicians, the firmware files for CV206H-B-10 are listed below.
General Features and Technical Specifications:
Brand/Mark: Universal Board
Model: CV206H-B-10
Main Chip:
Product: LCD/LED TV
LED Backlight: mA
Flash IC: 8Mb
HDMI Input: 03
USB Input: 01
PC Input: Yes
Sound Chip:
Tuner IC:
Screen supported: 26-29 inch
Resolution: Up to 1920×1080
Panel Voltage: 5V, 12V
Power Input: 12V DC
Firmware Name: NA
Firmware Type: Backup Dump
Service Code:
Source/Input 2580 Or Menu 1147
Note: The following firmware is USB bootable and a backup file that can be loaded by a programming tool. Kazmi Elecom Team is not responsible for any type of damage/loss as a result of uploading/downloading the firmware. First, check and verify the main board then install software. If you are new and do not have enough knowledge of loading/installing software/firmware or dump files, or facing any issues during firmware installation then visit and read here first. Always keep a backup before writing the flash.
CV206H-B-10 firmware for free download:
