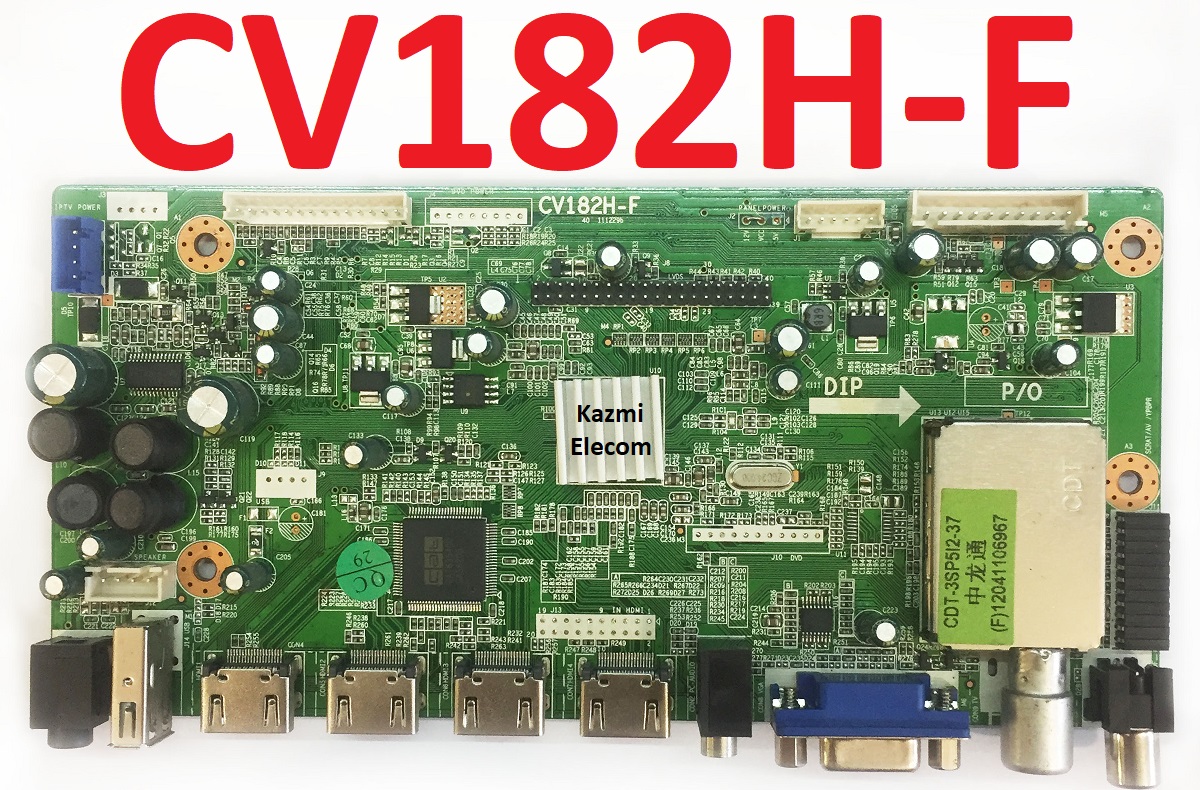

CV182H-F LED TV Board
CV182H-F is a simple ATV Driver Motherboard designed for LCD/LED TVs. This board is suitable for the Russia, Asia Pacific, and the Middle East markets. This is a Non-Combo Board. The main power module and LED Backlight Inverter Circuit module are required separately but ATV Card is builtin into this motherboard. This board has all the features as per the latest requirements like multi HDMI inputs, USB interface, PC input, Component Input, TV, and Scart. CV182H-F firmware files are given below for the technician’s support.
General Specifications:
Brand/Mark: Universal Board
Model: CV182H-F
Main Chip: MST6M181/182
Product: LED TV
LED Backlight: mA
Flash IC: 4Mb
Sound Chip: TPA3110D2
Tuner: F03WT-3DDR-E
Screen supported: 26 to 42 inches
Resolution: Up to 1920×1080
Panel Voltage: 5V, 12V
Power Input: 12V DC
Service Code:
Source/Input 2580
Note: The following given Software is a backup Dump and can be written by a programming tool. Kazmi Elecom Team is not responsible for any type of damage/loss as a result of uploading/downloading the firmware. First Check the mainboard and then install the software. If you are new and do not have enough knowledge of loading or installing software/firmware or dump files then read here first.
CV182H-F firmware for free download:
For video tutorials, visit “Kazmi Elecom” my youtube channel.
