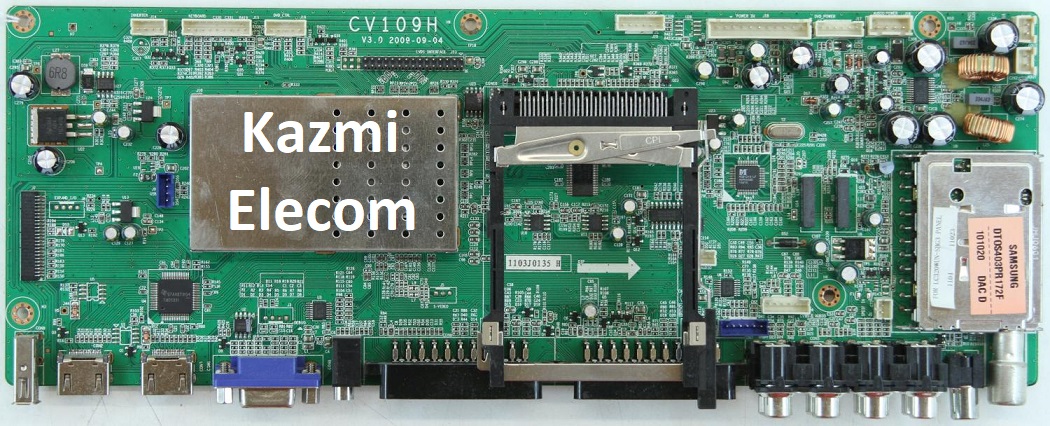

CV109H LED TV Board

CV109H is a simple ATV Driver Motherboard designed for LCD/LED TVs. This board is suitable for the Asia Pacific and the Middle East markets. This is a Non-Combo Board. The main power module and LED Backlight Inverter Circuit module are required separately but ATV Card is built into this motherboard. This board has all the features as per the latest requirements like HDMI input, USB interface, PC input, Component Input, TV, and Scart.CV109H firmware files are given below for the technician’s support.

Download Here

General Specifications:

Brand/Mark: Universal Board

Model: CV109H V2.0, V2.1, V3.0

Main Chip: MST 109BL MSD109C

Product: LED TV

LED Backlight: NA

Flash IC: 4Mb

Sound Chip: TPA3124D2

Tuner IC: DVB-T-8D1C/T114A25 DT0S403PR172F

Screen supported: 29-47 inches

Resolution: Up to 1920×1080

Panel Voltage: 5V, 12V

Power Input: 12V DC

Service Code:

Source/Input

Note: The following given Software is a backup Dump and can be written by a programming tool. Kazmi Elecom Team is not responsible for any type of damage/loss as a result of uploading/downloading the firmware. First Check the mainboard and then install the software. If you are new and do not have enough knowledge of loading or installing software/firmware or dump files then read here first.

CV109H firmware for free download:
