CS8001S-S20050(20080)

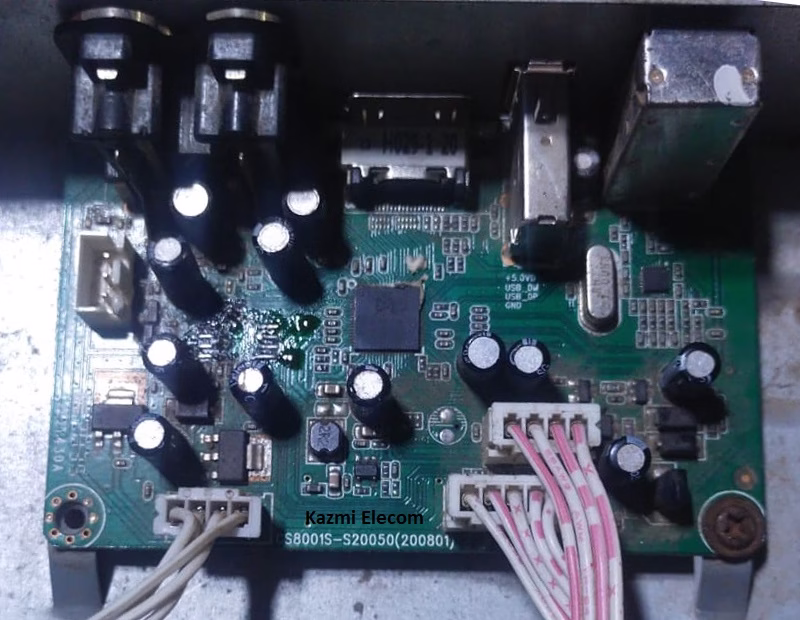

CS8001S-S20050 is a digital satellite receiver main board with chipset CS8001. It is a 1080P receiver board supported by Full HD. It has a dual USB input interface for software upgrades and multimedia playing, one HDMI output interface for a Full High Definition output display, and RCA output ports for analog display. It has a single tuner with a loop option.
The CS8001S_S20050 satellite receiver board dump file is shared in this post so that users can recover it from the standby position if its software malfunctions due to any fault. The SPI flash memory (ROM) is 4 MB and RAM is built into the main system chipset.

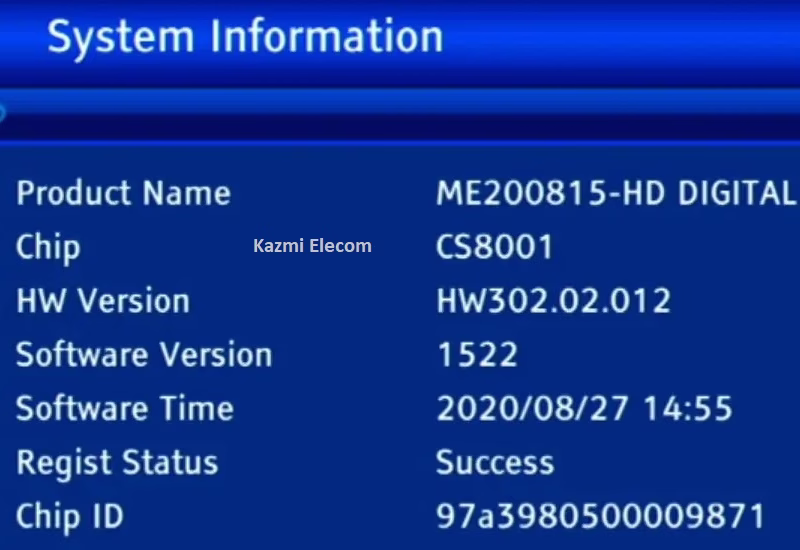

CS8001S-S20050(20080) General Information:
- Brand: NA
- Model: NA
- Main Board: CS8001S-S20050 (20080)
- Main Chip: CS8001
- Software Version: 1522
- HW Version: HW302.02.012
- SPI Flash: 4MB
- H.264 video coding
- FULL HD 1080P
- 2remote control
- Wifi antenna Support
- 2 USB Slots
- Multi-Language
- DISEQC1.0 / 1.1/1.2
- PAL/NTSC Supported
Note:
The CS8001S-S20050 receiver software provided below is a backup dump file. It can be loaded using a programming tool or a loader tool on a non-functional receiver, or it can be used to upgrade or downgrade the SPI Flash Memory of a functioning satellite receiver through the USB upgrade process or the RS232 upgrade tool. Please note that the Kazmi Elecom Team is not liable for any damage or loss from uploading or downloading the software. Always have a backup before loading the USB software or writing to the SPI flash memory. For more Dump Files Visit Here.
