B.SPC81B-1 Software Free Download

B.SPC81B-1 LCD TV Board

B.SPC81B-1 is a universal LCD driver Board that has HD resolution Supported up to 1366×768. B.SPC81B-1 is a non-combo board which means the main power supply and LCD backlight driver board are required separately while the ATV module and sound card are built in. It can support 15-inch to 24-inch LCD screen panels. The firmware files are given below for the technician’s support.

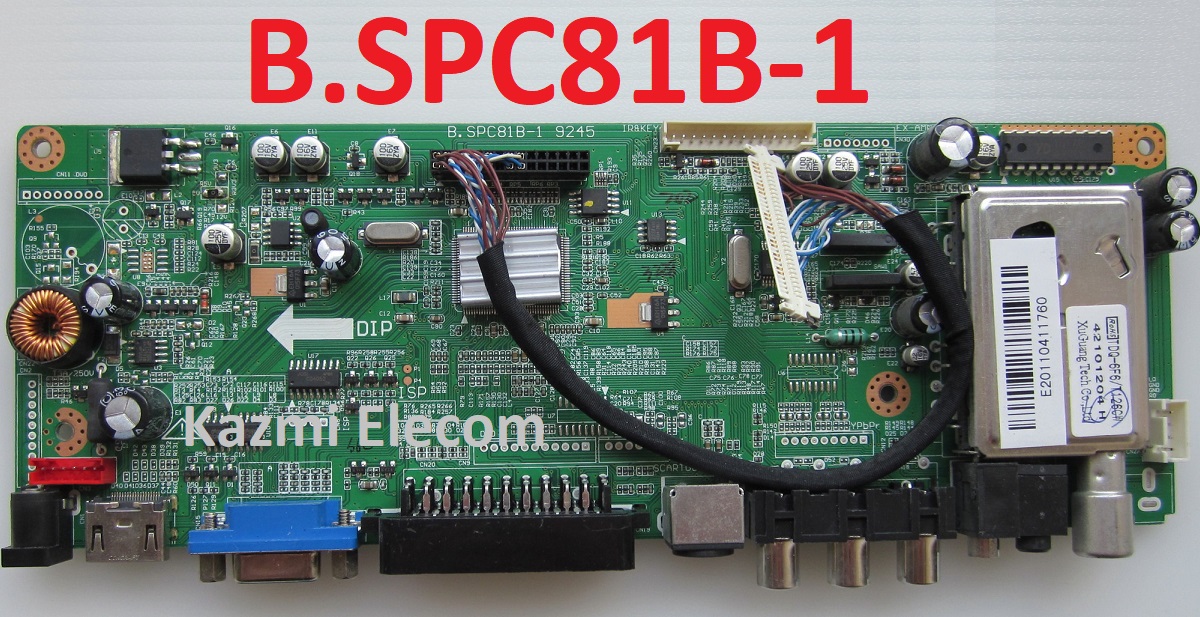

B.spc81B-1

General Specifications:

Brand/Mark: China Universal

Model: B.SPC81B-1 9245, B.SPC81B-1 1132

Main Chip: TDA15021

TV System: PAL\SECAM\NTSC PLAYBACK

Product: LCD TV

Input Voltage: 12V DC

MAX Backlight Watt: NA

Backlight Current: NA

Resolution: up to 1366×768

Flash size: 1 MB

EEPROM: 24C64

AUDIO: 1517

Tuner: TDQ-6F6/T1260W, ET6T1E-LF-108W-A

Service Menu:

Source

Note: The following given Software is a backup Dump and can be written by a programming tool. Kazmi Elecom Team is not responsible for any type of damage/loss as a result of uploading/downloading the firmware. First Check the mainboard and then install the software. If you are new and do not have enough knowledge of loading or installing software/firmware or dump files then read here first.

B.SPC81B-1 firmware for free download:

Kazmi-Elecom

For video tutorials, visit “Kazmi Elecom” my YouTube channel.
