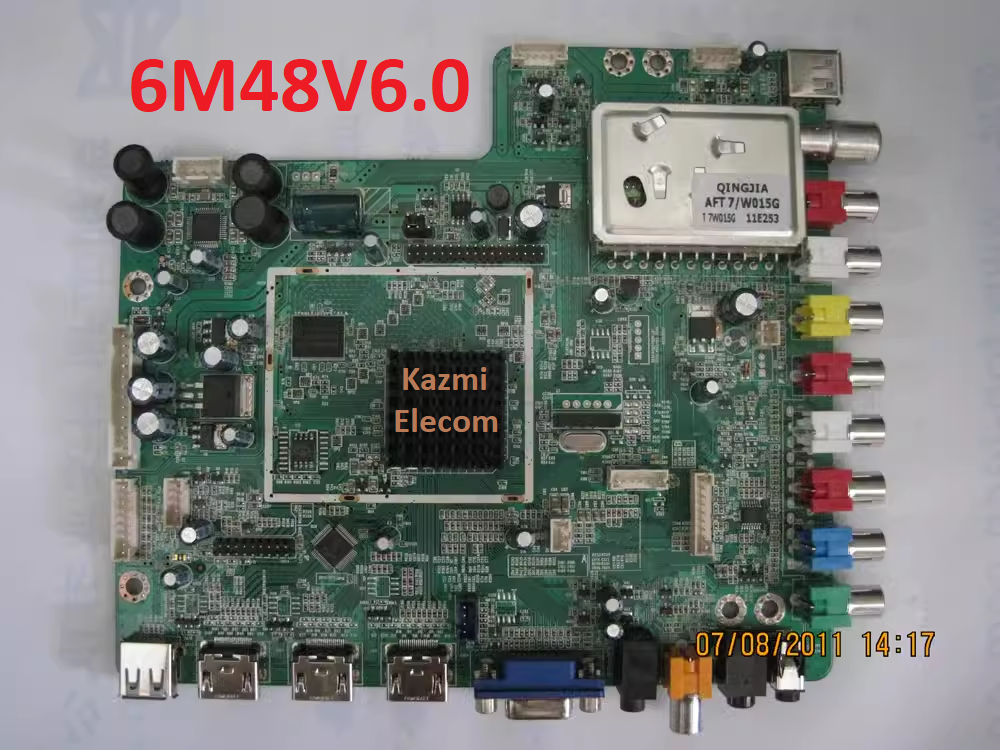

6M48V6.0 HD LCD TV Board
6M48V6.0 is an HD LCD TV Board for Asia and the Middle East, supports HDMI, AV, PC-RGB, S-Video(Option), USB, YPbPr, TV signal input, Earphone, SPDIF, CVBS.
Basic Info:
Model No. 6M48V6.0
Main Chipset: MST6M48
Trademark: TOP-TECH
Display Format: up to 1920×1080
Aspect Ratio: 4:3, 16:9 & 16:10
General Specifications:
TV System: PAL/SECAM/NTSC
Panel Interface: Single channel or Dual channel 6/8 bit LVDS
Key Button Functions: CH-/CH+/MENU/VOL-/VOL+Souce/Power
Multi-Language OSD: Yes
Input/Output Ports: HDMI, VGA, AV, USB, RF TV interface and Earphone Out
Audio O/P Power: 2 x 3 Watt (8 ohm)
Panel Voltage: +3.3V/+5V/+12V DC (jumping cap setting)
USB Port: Yes for Firmware Upgrade and Multimedia Playback Support also
IR Control: Yes (Controllable by Remote Control)
Electrical Parameters:
Working Input Voltage: DC +12 Volt
Maximum Current: 2000mA (Without Panel)
Standby Power: <0.2W (for the motherboard only)
Maximum Current for USB: 500mA
How to Upgrade Firmware:
Step 1: Empty the U disk
Step 2: Copy the corresponding resolution program to the U disk based on your screen size.
Step 3: Connect the U disk with the Mainboard
Step 4: Connect the Keyboard and TV Mainboard
Step 5: Connect the power supply, and check the keyboard light. If there is a flashing light, that is in the written program, waiting for the light to turn to Green, work is done. If there is no flashing light, please cut off the power supply, then connect the USB once again, and then connect the power supply again.
Factory Service Mode:
Menu+2580
Note:
The following Software is a USB bootable file and can be loaded by USB disk. Kazmi Elecom Team is not responsible for any type of damage/loss as a result of uploading/downloading the firmware. First Check the mainboard and then install the software. If you are new and do not have enough knowledge of loading or installing software/firmware or dump files then read here first.
6M48V6.0 Firmware Free Download :
