5851-A7M25G-0P00 Software Free Download

5851-A7M25G-0P00 Smart Android Board

5851-A7M25G-0P00 is a Full HD smart Android LED TV motherboard. This board can support a maximum screen resolution of 1920×1080 Full High Definition 1080 Pixels. It is a combo three-in-one smart Android board means it is a network board with a three-in-one option. The main power module supply, the backlight inverter module, and cable TV tuners are built into a single piece of board (Printed Circuit Board). It has the smart Android platform version.

Download Here

The 5851-A7M25G-0P00 smart Android motherboard has a dual TV signal reception system with an Analog tuner (PAL, SECAM, NTSC) and a Digital tuner (DVB-S, DVB-S2, DVB-T, DVB-T2). This board has multiple input and output user connectivity interfaces, such as Dual USB, Triple HDMI inputs, SPDIF output, CI+ interface, RCA component Input, and RJ45 Ethernet connectivity interface for wired internet connectivity.

5851-A7M25G-0P00 General Information:

Board Model: 5851-A7M25G-0P00

Main Chipset: MSD6486XTAT-8-00EU

CPU: Quad-Core

GPU: Dual-Core

Smart platform: Android

Resolution: 1920×1080

Audio Power: 2x6W (12 watts)

Backlight Current: 380-620 mA

Backlight Voltage Range: 40-114 Volt

USB Ports: 2

HDMI Ports: 3

CI: Yes

Component: Yes

RJ45: Yes

Analog Tuner: PAL, SECAM, NTSC

Digital Tuner: DVB-S, DVB-S2, DVB-T, DVB-T2

Wifi: Yes

Mira-Cast:

Memory (RAM): 512MB DRAM

Storage (ROM): 4 GB EMMC Flash

EMMC: THGBMNG5D1LBAIL

Power Rating: 110V~240V 50/60Hz

Power Consumption: 65Watt

Firmware Name:

Firmware Type: EMMC Backup Dump

Product Users: COOCAA

5851-A7M25G-0P00 Technical Specifications:

Resolution 1920×1080 Full HD
HD support HD
LED backlight DLEDD
Response time 8 ms
Display scale 16:09
Stereo sound Yes
Matrix type LED
Refresh rate 60 Hz
Processor frame Quad core
GPU Dual core
OS version Smart
RAM (DRAM) 1GB
ROM (Flash) 8GB
WIFI 2T2R
HDMI 2.0 (HDCP 2.2) 3
HDMI CEC (T-link) Full
Caption (Subtitle) Yes
USB HID support Yes
USB channel list clone Yes
USB 2.0 2
Teletext there is
ATV PAL, SECAM, NTSC
DTV DVB-S, DVB-S2, DVB-T, DVB-T2
Sound power 6w+6w
Acoustic system Buffer speakers
DOLBY DIGITAL there is
Supported formats MP3, WMA, MPEG4, MKV, JPEG
Social Applications Yes
Web browser Yes
Processor Quad Core
WiFi sharing Yes
Hardware interface ‎USB, AV port, HDMI
Connector type ‎Wi-Fi, USB, Ethernet, HDMI

How to Write 5851-A7M25G-0P00 EMMC Backup:

Download the given 5851-A7M25G-0P00 EMMC backup shared in this post below

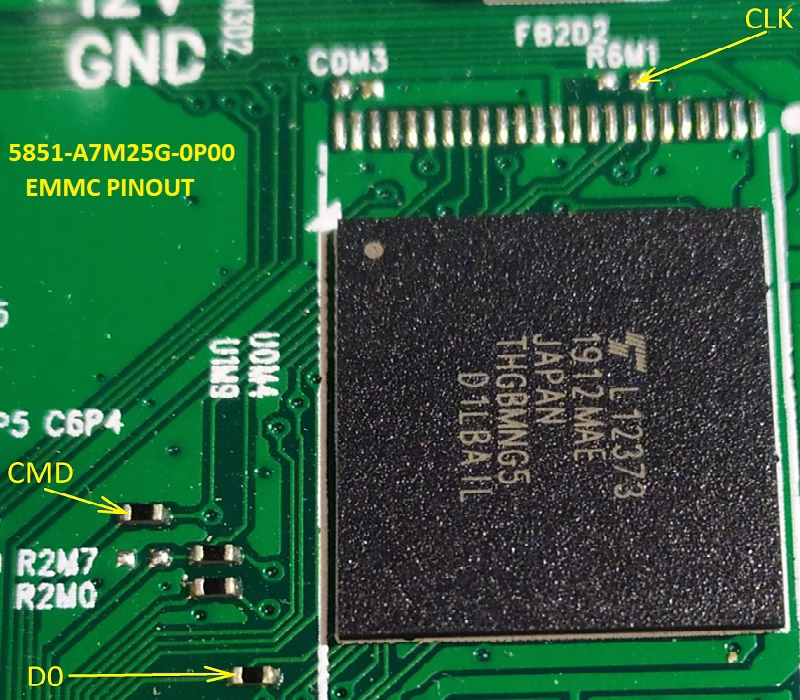

Note the EMMC Pinouts (D0, CMD, CLK) in the given picture above
Jtag the mainboard with the Programming Tool
Write the EMMC data
Done.

Note: The following 5851-A7M25G-0P00 firmware is a backup dump file. Kazmi Elecom Team is not responsible for any type of damage/loss as a result of uploading/downloading the firmware. First, check and verify the main board then install software. If you are new and do not have enough knowledge of loading/installing software/firmware or dump files, or facing any issues during firmware installation, visit and read here first.
