5844-A9K04T-0P00 Firmware Free Download

5844-A9K04T-0P00 UHD Smart Board

5844-A9K04T-0P00 is a UHD smart LCD LED TV Driver Controller motherboard. The supported resolution of this board is 3840×2160 maximum 2160 pixels Ultra High Definition. This board is suitable for 50-inch to 65-inch LCD LED TV screen panels. This board is a non-combo board. LED backlight driver inverter module and the main power input circuit module are required to complete the TV installation setup. MediaTek makes the main processor of this board which is the Arm cortex quad-core CPU. Its storage (ROM) capacity is 16 GB EMMC Flash memory.

Download Here

5844-A9K04T-0P00 is a 4K universal smart board with multiple user connectivity interfaces such as three HDMI input ports for High-Definition video and audio input and dual USB input ports for media playback and software upgrades. It has an Antenna port for cable connection. This board has a 3.5mm jack as a service for technicians. It has an SPDIF optical interface for high-definition surround sound audio output. This board also has a composite interface for SD audio and video input. LAN port is also available for high-speed ethernet network connection.

5844-A9K04T-0P00 General Information:

Board Model: 5844-A9K04T-0P00

Main Chipset: MediaTek

CPU: Quad-Core ARM Cortex-A53 64-bit

GPU: Mali-450 MP3

Android Version: Android 7/8.0

Resolution: 3840×2160

Audio Power: 2x10W (20 watt 8 ohm)

Backlight Volt: 90-102V

Backlight Current: 570mA

Backlight Power: 180W2

USB Ports: 2

HDMI Ports: 3

CI: No

Component: Yes

RJ45: Yes

Tuner: NTSC/PAL

Wifi: Yes

Mira-Cast: Yes

Memory (RAM): 1.5 GB DRAM

Storage (ROM): THGBMFG7C1LBAIL 16 GB EMMC Flash

Power Rating: 100V~240V 50/60Hz

Power Consumption: 120Watt

Firmware Name: upgrade_loader_common_user_globe_ap_8.0_20181206_KG.pkg

Firmware Type: EMMC Backup Dump and USB bootable Update File

Product Users: Onida, Skyworth, Kogan, IRIS

5844-A9K04T-0P00 Technical Specifications:

Resolution 4K UHD 2160P 3840×2160
HD support HD
LED backlight DLEDD
Response time 8 ms
Display scale 16:09
Stereo sound there is / there is
Matrix type LED
Refresh rate 60 Hz
Processor frame 64-bit ARM Cortex-A53 Quad-Core
GPU Mali-450 MP3
OS version Android 7.0 & 8.0
RAM (DRAM) 1.5GB
ROM (Flash) 16GB
WIFI 2.4GHz / 5GHz
HDMI 2.0 (HDCP 2.2) 2
HDMI CEC (T-link) Full
Caption (Subtitle) Yes
Game mode Yes
Bluetooth SBC / 4.2
Sleep Timer Yes
HDMI quick switch Yes
DLNA 1.5 Yes
USB HID support Yes
USB channel list clone Yes
USB 2.0 2
Teletext there is
ATV PAL/NTSC
Sound power 10w+10w
Acoustic system Buffer speakers
DOLBY DIGITAL there is
Supported formats MP3, WMA, MPEG4, MKV, JPEG
Remote control 3V DC
Social Yes
Web browser Yes
Processor Quad Core
Smart Home TCL Home, Google Home
WiFi sharing Chromecast & T-cast
AI Google Assistant Google Assistant Ready
SmartTV Android TV

How to Write 5844-A9K04T-0P00 EMMC Backup:

Download the given 5800-A7M42G-0P00 EMMC backup shared in this post below

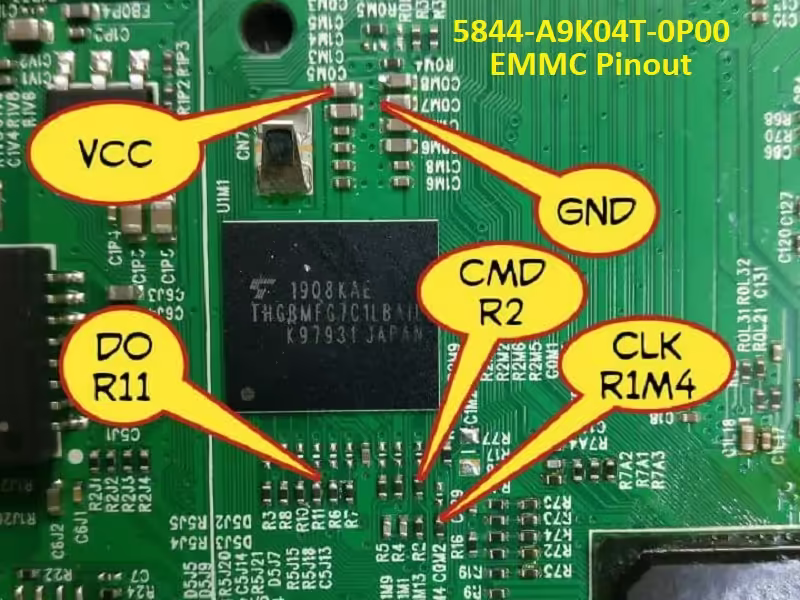

Note the EMMC Pinouts (D0, CMD, CLK) in the given picture above
Jtag the mainboard with the Programming Tool
Write the EMMC data
Done.

How to Install USB Bootable Firmware:

Download the required 5844-A9K04T-0P00 USB bootable firmware to upgrade Android 7.0 to Android version 8.0.
Extract the zip files to get the folder.
Transfer the firmware (upgrade_loader_common_user_globe_ap_8.0_20181206_KG.pkg) file to the empty FAT32 formatted USB disk
Switch OFF the TV/Board from the main power
Insert the pen drive into the USB port 1 of the board
Power On the TV and release standby from the remote control It will automatically boot the software
The installation progress bar will display on the screen.
Wait till completion
Reset to factory default

Note: The following 5844-A9K04T-0P00 firmware is USB bootable and a backup dump file. Kazmi Elecom Team is not responsible for any type of damage/loss as a result of uploading/downloading the firmware. First, check and verify the main board then install software. If you are new and do not have enough knowledge of loading/installing software/firmware or dump files, or facing any issues during firmware installation then visit and read here first.
