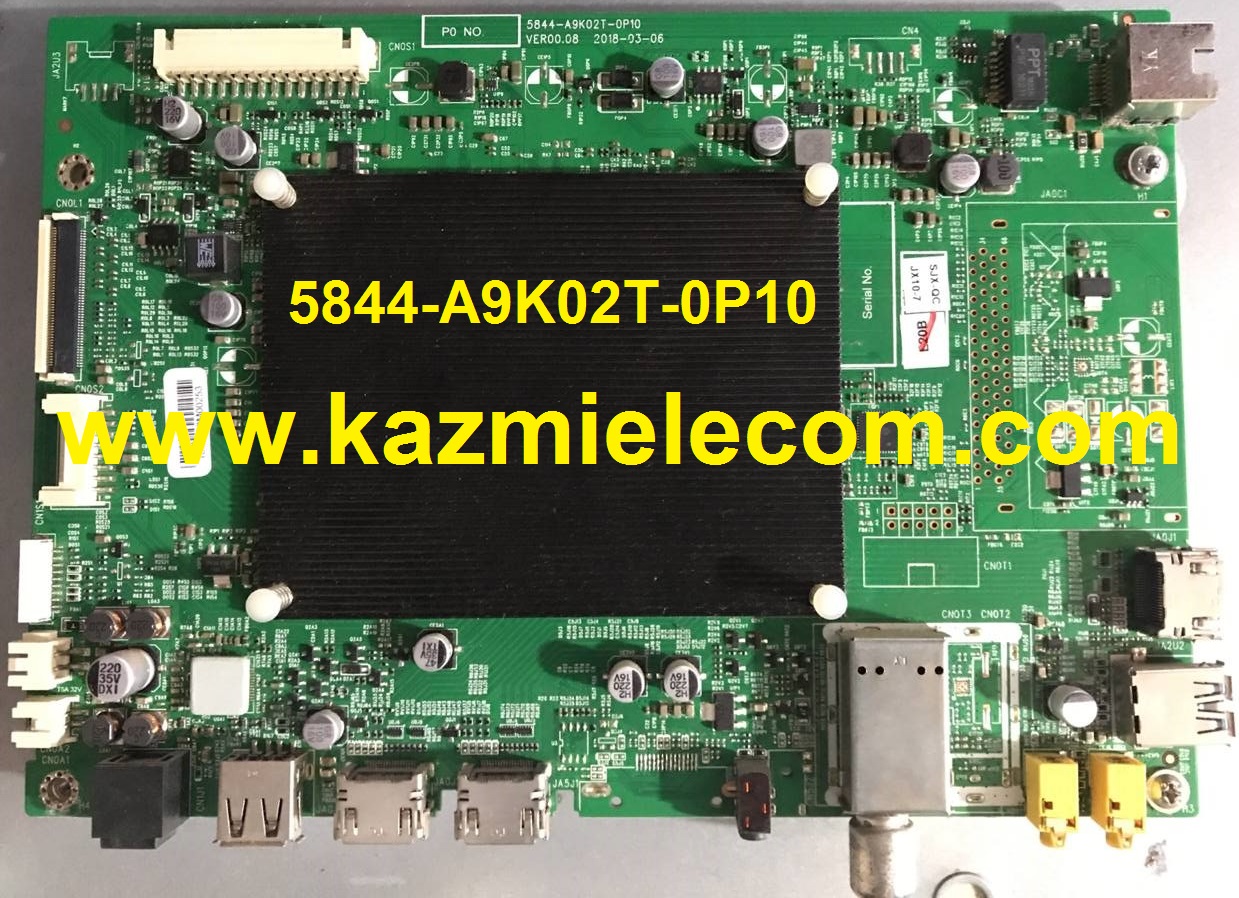

5844-A9K02T-0P10 UHD Board
5844-A9K02T-0P10 is a 4K supported ultra HD quad-core processor and twin tuner DVB-T/T2 led tv mainboard. It has a supported resolution of 3840×2160. It has multiple user connectivity interfaces like HDMI, AV, HP, Component, and USB interface with RJ45 internet connectivity. Board performance is best for UHD screen panels. 5844-A9K02T-0P10 firmware files are given below for the technician’s support.
Technical Specifications:
Brand/Make: China
Model: 5844-A9K02T-0P10
Screen supported: 55-65 inches
Panel resolution: 3840×2160
Processor: 4-Cores
Internal Memory: GB
OS Version: Android 6.0
On-Screen Display languages: Multi-Language
Screen Format Adjustments: 16:9
Sound Output power: 20W (10+10) Dolby Digital
Sound System: Stereo
Sound Enhancement
Auto Volume Leveller
Number of HDMI connections: 3
Number of USB connections: 2
Number of Tuners: 1 tuner
Tuner type: Analog & Digital
Analog signal format system: NTSC,PAL,SECAM
Digital signal format system: DVB-C, DVB-S, DVB-S2, DVB-T, DVB-T2
Power consumption: 200 W
Power supply: 110-240VAC, 50/60Hz
Standby power consumption: 0.5 watt
Firmware Name: MstarUpgrade.bin
Firmware Type: USB Upgradeable
Product: Toshiba
Note: The following given software/firmware is USB upgradeable. Kazmi Elecom Team is not responsible for any type of damage/loss as a result of uploading/downloading the firmware. If you are new and do not have enough knowledge of loading or installing software/firmware or dump files then read here first.
How to Download:
Download all parts of the following given firmware/software and then extract any one of them you will get the folder. Now copy the files to USB. for More Detail about download process watch the video Click Here
5844-A9K02T-0P10 firmware files for free download:
| S.NO. | BRAND/MODEL | DOWNLOAD LINK |
|---|---|---|
| 1 | TOSHIBA 55U7750VN FIRMWARE.part1 | Download |
| TOSHIBA 55U7750VN FIRMWARE.part2 | Download | |
| TOSHIBA 55U7750VN FIRMWARE.part3 | Download |
For video tutorials, visit “Kazmi Elecom” my youtube channel.
I copied the Bin file in the pendrive and then tried holding power button. No, changes. It goes to Android loading screen and then loaded as usual.
TV: Thomson 43OATH1000
Board: 5844-A8k02T-OP10
User the suggested files and extracted as advised. Please guide further or share new steps
files shared in this post is for toshiba not for thomson. if tv is working then why you need to load firmware
