5800-A9K02T-0P00 Firmware Free Download

5800-A9K02T-0P00 4K LED TV Board

5800-A9K02T-0P00 is a Smart Android Ultra HD (4K) Certified Android LED TV Board. It has a 4K Ultra HD resolution of 3840×2160 and a Refresh Rate is 60 hertz. It has triple HDMI input ports to connect several HD external devices such as gaming consoles, (STBs) set-top boxes, and Blu-Ray players. It has dual USB ports to connect external hard disk drives and other USB devices. The user can also play multimedia files as well. It has Dolby DTS Support 20 Watts sound output and HDR Display viewing. It has a mini RCA (Composite Input jack) and LAN port for wired internet connectivity.

5800-A9K02T-0P00 is a Non-Combo board. The Backlight driver controller module and the main input power circuit kit will be required for the complete installation of the LED TV. While the RF tuner for cable TV is built on the main PCB board. It can support Google Play Store, and Smart TV Features such as Android, Google Voice Search, and Remote with Voice & Air Mouse. Multiple applications are built into this software. 5800-A9K02T-0P00 firmware files are given below for free of cost download and rectify the problem of LED TVs.

General Features & Specifications:

Brand: China

Board Model: 5800-A9K02T-0P00 VER00.07

Display Format: UHD

Screen Type: LED

Features Format: Smart

OS Version: 8.0

Chipset:

Processor: Quad-Core

Graphic Processor: Quad-core

RAM Capacity: GB DDR3

Storage Memory: GB ROM

Screen Resolution: 4K 3840×2160 (Ultra Hd)

No of HDMI Ports: 3

No of USB Ports: 2

Wi-Fi Type: Wi-Fi

Built-In Wi-Fi: Yes

Ethernet (RJ45): Yes

Speaker Output RMS: 30W (15W*2)

TV Tuner: Analog/Digital

Power Requirement: AC 110 – 240 V, 50/60 Hz

Power Consumption: 135 W

Firmware Type: USB Update

Firmware Name: upgrade_loader_common_user_globe_ap.pkg

Product: Skyworth, VU

Caution:

All the images, features, and specification details related to 5800-A9K02T-0P00 in this post are for reference only. Still, it’s better to visit the nearest technician first without loading the software/ firmware, If you’re a stoner and don’t have any form experience. occasionally, the fault is different grounded on the visual compliances. So, please don’t try it at home. If the LED television is slow also reset it to plant dereliction only.

5800-A9K02T-0P00 EMMC Backup:

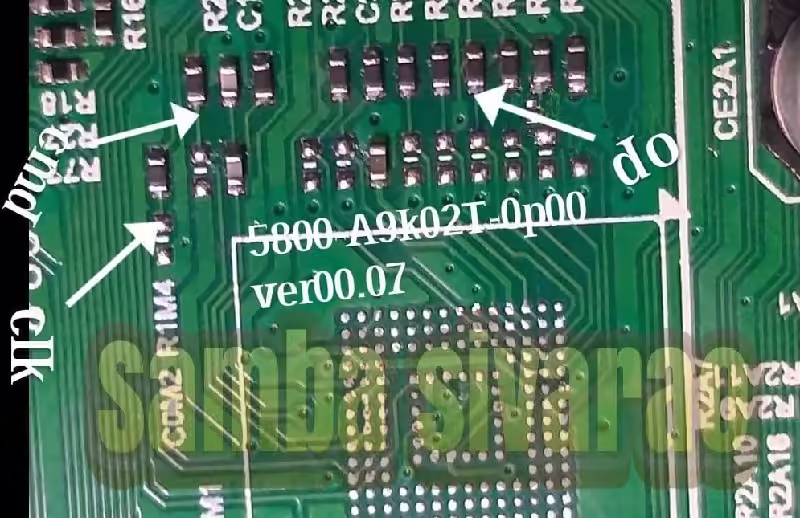

This board has an 8 GB eMMC chip. you can read the EMMC backup by Pendrive but for writing a backup of EMMC you should jtag the mainboard 5800- A9K02T- 0P00 and write by a programming tool. Be careful while writing emmc backup train, if the board is on standby light due to wrong software or deficient installation also you can do it, else, it’s on buttress or red light due to tackle fault. So, first trace the fault. In this case, no need to write emmc backup.

5800-A9K02T-0P00 Board Replacement:

If the board is completely dead and no chance to repair then replace the same board as already installed. And if the same board is not available on the market then search for the board that has the same specifications, the newest Android version, and the latest features to avoid any difficulties. If the backlight module is defective in the quintet board also you can install only the backlight module independently also no need to change the whole board.

Note: The following firmware is a USB rush and EMC backup train. Kazmi Elecom Team isn’t responsible for any damage/ loss caused by uploading/ downloading the firmware. First, check and corroborate the main board also install software. However, or facing any issues during firmware installation also visit If you’re new and don’t have enough knowledge of lading/ installing software/ firmware or dump lines. and read here first.

How to Download Firmware File:

Download all parts of the following firmware and then extract any one of them you will get the folder. Now copy the files to USB. For more Details about the download process watch the video Click Here

5800-A9K02T-0P00 Firmware for free download:

• 5800-A9K02T-0P00 3840×2160-SKYWORTH-43-EMMC.part1
• 5800-A9K02T-0P00 3840×2160-SKYWORTH-43-EMMC.part2
