5800-A7M42G-0P00 Firmware Free Download

5800-A7M42G-0P00 FHD Smart Board

5800-A7M42G-0P00 is a smart network LCD LED TV driver controller board. The maximum supported resolution of this board is 1080P 1920×1080 Full HD. The main processor (CPU) used in this board is made by Mstar (MSD6683). The picture quality and the sound quality of the 5800.A7M42G.0P00 board is very excellent. The total sound output is 12 watts, and the dual stereo sound output speaker system is 6 watts each. The RAM of this board is 1 GB and the ROM storage capacity is up to 8 GB (EMMC Flash). 5800.A7M42G.0P00 is best suited for 32-inch to 43-inch LCD LED TV screen panels.

Download Here

5800-A7M42G-0P00 is a three-in-one LCD LED TV motherboard that is also called a combo board. The 5800.A7M42G.0P00 combo board has the built-in power input supply circuit, the cable TV tuner, and the LED backlight inverter circuit on a single printed circuit board. This board has multiple user connectivity interfaces to connect different devices at a time. It has two USB ports for connecting USB devices, external hard disk drives, and software upgrades. For connecting Full High Definition digital devices, it has the option of dual HDMI inputs. The user can connect several devices at a time with this board.

5800-A7M42G-0P00 General Information:

Board Model: 5800-A7M42G-0P00 VER00.05 2019-02-15

Main Chipset: MSD6683

CPU: Quad-Core ARM Cortex-A53

GPU: Dual-Core G52MP2

Operating System: Smart

Resolution: 1920×1080

Audio Power: 2x6W (12 watts)

Backlight Current: 380-620 mA

Backlight Voltage Range: 40-114 Volt

USB Ports: 2

HDMI Ports: 2

CI: No

Component: Yes

RJ45: Yes

Analog Tuner: PAL, SECAM, NTSC

Digital Tuner: DVB-T, DVB-T2, DVB-C, DVB-S, DVB-S2

Wifi: Yes

Mira-Cast: Yes

Memory (RAM): 1GB DRAM

Storage (ROM): 8 GB EMMC Flash

EMMC: THGBMJG6C1LBAIL

Power Rating: 110V~240V 50/60Hz

Power Consumption: 65Watt

Firmware Name: upgrade_loader_no_tvconfig.pkg

Firmware Type: USB Bootable and EMMC Backup Dump

Product Users: Skyworth, Harper, AllView, Motorolla, Panasonic, etc

Factory Menu Code:

Enter the service menu (by clicking on the remote control “Menu”, enter the “Additional settings” item, and press the combination of numbers 3195)

5800-A7M42G-0P00 Technical Specifications:

Resolution 1920×1080 Full HD
HD support HD
LED backlight DLEDD
Response time 8 ms
Display scale 16:09
Stereo sound there is / there is
Matrix type LED
Refresh rate 60 Hz
Processor frame ARM Cortex-A53/1, 5GHz/Quad core
GPU G52MP2/Dual core
OS version Smart
RAM (DRAM) 1GB
ROM (Flash) 8GB
WIFI 2T2R
HDMI 2.0 (HDCP 2.2) 2
HDMI CEC (T-link) Full
Caption (Subtitle) Yes
USB HID support Yes
USB channel list clone Yes
USB 2.0 2
Teletext there is
ATV PAL, SECAM, NTSC
DTV DVB-T, DVB-T2, DVB-C, DVB-S, DVB-S2
Sound power 6w+6w
Acoustic system Buffer speakers
DOLBY DIGITAL there is
Supported formats MP3, WMA, MPEG4, MKV, JPEG
Social Applications Yes
Web browser Yes
Processor Quad Core
WiFi sharing Yes

How to Write 5800-A7M42G-0P00 EMMC Backup:

Download the given 5800-A7M42G-0P00 EMMC backup shared in this post below

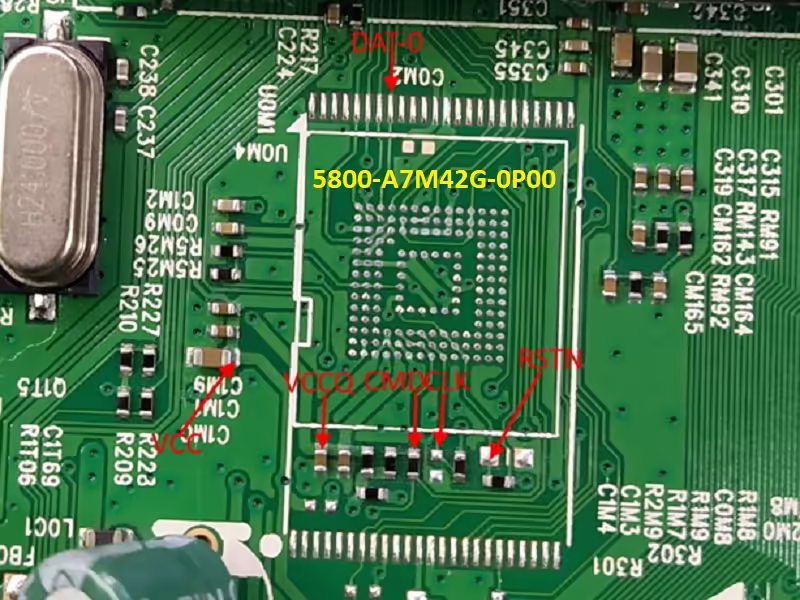

Note the EMMC Pinouts (D0, CMD, CLK) in the given picture above
Jtag the mainboard with the Programming Tool
Write the EMMC data
Done.

How to Install USB Bootable Firmware:

Download the required 5800-A7M42G-0P00 USB bootable firmware.
Extract the zip files to get the folder.
Transfer the firmware (upgrade_loader_no_tvconfig.pkg) file to the empty FAT32 formatted USB disk
Switch OFF the TV/Board from the main power
Insert the pen drive into the USB port 1 of the board
It will automatically boot the software, otherwise keep pressing the power key button and then switch on
The installation progress bar will display on the screen. Now release the power button
Wait till completion. Done

Note: The following 5800-A7M42G-0P00 firmware is USB bootable and a backup dump file. Kazmi Elecom Team is not responsible for any type of damage/loss as a result of uploading/downloading the firmware. First, check and verify the main board then install software. If you are new and do not have enough knowledge of loading/installing software/firmware or dump files, or facing any issues during firmware installation then visit and read here first.
