40-RT95L1-MAB2HG Smart Android Board

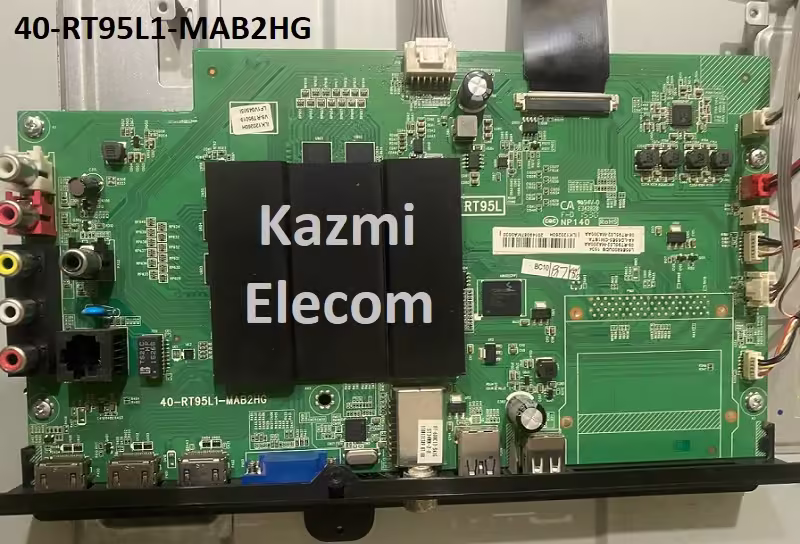

40-RT95L1-MAB2HG is a smart Android UHD LED TV motherboard. The maximum resolution supported by this board is Ultra HD 4K 3840×2160. 40.RT95L1.MAB2HG can be equipped with 50-inch screens to 65-inch screen panels. The main processor Quad-Core 1.2 GHz is made by Realtek. The memory capacity of 40.RT95L1.MAB2HG board is 1 GB RAM and 8 GB ROM (EMMC NAND Flash). Android applications are built into this board software and users can also install it by their own choice. 40.RT95L1.MAB2HG has a powerful 16-watt (8*2) Dolby sound system. the quality of the sound is good. The picture and display quality of this board is very excellent.

Download Here

40-RT95L1-MAB2HG is a non-combo board. This board does not three in one means not builtin the main power input circuit and the backlight driver circuit module in this motherboard are together. So, these models are required separately to complete the TV system. 40.RT95L1.MAB2HG board has multiple input interfaces for user convenience such as triple HDMI input to connect multiple external Full HD digital devices together such as Gaming Consoles, Blu-ray Media Players, set-top boxes, etc. It has a dual USB input option to connect external Hard Disk Drive, play multimedia Files, and software/firmware upgrading purposes. 40.RT95L1.MAB2HG board has also other necessary interfaces like VGA Input with an audio option for PC and Laptop connectivity, and RCA inputs for analog devices.

40-RT95L1-MAB2HG board has a Headphones output option to amplify the sound, a built-in Wi-Fi connection, and a LAN interface for wired internet connectivity to make the browser surfing smooth and fast.

40-RT95L1-MAB2HG General Information:

Model Name: 40-RT95L1-MAB2HG

Chassis: RT95L

Software Version: V8-RT95019-LF1V

Resolution: 3840×2160

Processor: Real Tek

RAM: 1 GB

ROM: 8 GB EMMC THGBMBG6D1KBAIL

Aspect Ratio: 16:09

Audio Power Output: 16w (8×2)

System: PAL//SECAM/NTSC

Tuner: Yes

HDMI: 3

USB Ports: 2

VGA: Yes

SPDIF: Yes

Scart: Yes

LAN: Yes (RJ45)

Firmware: Install.img

Firmware Type: EMMC Backup Dump and USB Bootable

Service Menu Code:

Menu Contrast 1950. For more Service Menu Codes visit Here.

Technical Specifications:

Manufacturer: China
Display Type: 4K
Screen Resolution: Ultra HD (3840×2160)
SMART TV support: Yes
Digital tuner: No
Panel type: LED
Screen format: 16:9
Wi-Fi Connectivity: Yes
Inputs: AV, HDMI x3, USB x2, Ethernet (RJ-45), Wi-Fi 802.11ac, CI
Outputs: Optic
Sound system: 2×8 W
Dolby: Yes
Supported formats: MPG, MPEG, MPEG2-PS, MP4, MKV, AVI, ASF, FLV, MP3, JPEG, PNG, BMP
Operating system: Linux
Refresh rate: 60 Hz
Wireless data transmission: Miracast
Contrast Ratio: 3,000,000: 1
Response Time: 2ms
Color System: PAL, SECAM, NTSC
TV System: PAL / NTSC

How to Write EMMC Backup:

Download the given 40- RT95L1-MAB2HG EMMC backup shared in this post below

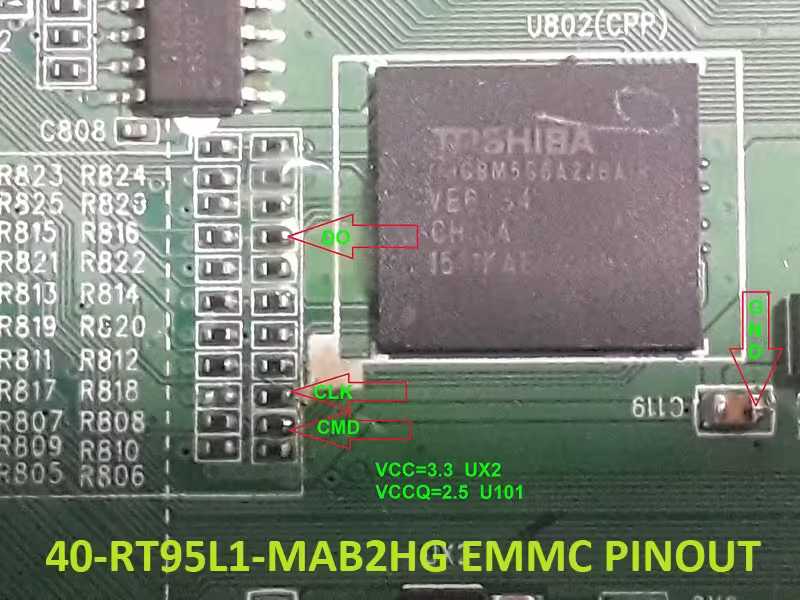

Note the EMMC Pinouts in the given picture above
Jtag the mainboard with the Programming Tool
Write the EMMC data
Done.

How to Install USB Bootable Firmware:

Download the required 40-RT95L1-MAB2HG USB bootable firmware.
Extract the zip files to get the folder.
Transfer the firmware (install.img) file to the empty FAT 32 formatted USB disk
Switch OFF the TV/Board from the main power
Insert the pen drive into the USB port of the board
Now keep pressing the power button of the board keypad and switch on the TV
The installation progress bar will display on the screen. Now release the power button
Wait till completion. Done

Note: The following 40-RT95L1- MAB2HG firmware is USB bootable and a backup dump file. Kazmi Elecom Team is not responsible for any type of damage/loss as a result of uploading/downloading the firmware. First, check and verify the main board then install software. If you are new and do not have enough knowledge of loading/installing software/firmware or dump files, or facing any issues during firmware installation then visit and read here first.
