40-NT63D1-MAB2HG Firmware Free Download

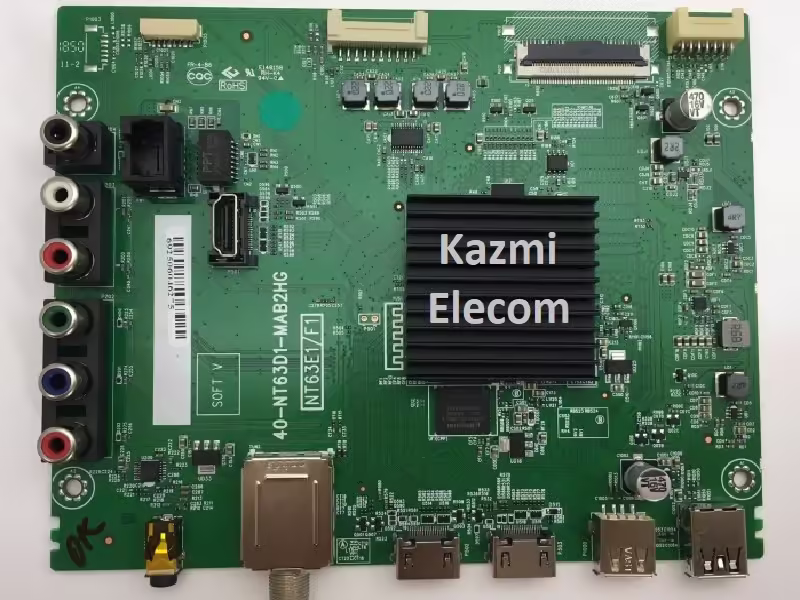

40-NT63D1-MAB2HG FHD Smart Board

40-NT63D1-MAB2HG is a Full HD smart Android LCD LED TV Board. the maximum resolution of this board can support up to 1920×1080 Full High Definition 1080P. This is suitable for 55-inch to 65-inch LED TV Screen Panels. The refresh rate for screen panels is 60 Hz. The operating system used in this board is Linux-based. Being a smart Android board it is very intelligent and fast. The main chip is made by Novatek ( NT72563MBG-TU) with Dual-Core A9 896MHz CPU and MALI 400MHz GPU. It has 768 MB of RAM and its storage memory (ROM) capacity is 4 GB. So, its processing speed is very fast and its response time is very efficient.

Download Here

40-NT63D1-MAB2HG is a non-combo board so the main power input module and the backlight driver inverter circuit module are required separately to complete the LED TV setup. It has multiple output and input connectivity interfaces to connect multiple devices at a time with it. It has triple HDMI inputs for connecting Full HD digital devices such as PlayStation, STBs, Gaming Consoles, Blu-ray media players, etc. It has also dual USB input ports for connecting external USB devices and external hard disk drives. Users can also upgrade software by USB input and can play multimedia files of their own choice.

40-NT63D1-MAB2HG General Information:

Model Name: 40-NT63D1-MAB2HG NT63E1/F1

Chassis: NT63BP1-AP

Main Chipset: NT72563MBG-TU

Software Version: V8-

Resolution: 1920×1080

Processor: NovaTek

RAM: 768 MB

ROM: 4 GB EMMC

Aspect Ratio: 16:09

Audio Power Output: 16w (8×2)

System: PAL//SECAM/NTSC

Tuner: Yes

HDMI: 3

USB Ports: 2

VGA: No

SPDIF: No

Scart: No

LAN: Yes (RJ45)

Firmware: Install.img

Firmware Type: EMMC Backup Dump

Service Menu Code:

Menu Contrast 1950. For more Service Menu Codes visit Here.

40-NT63D1-MAB2HG Technical Specifications:

Manufacturer: China
Display Type: 2K
Screen Resolution: Full HD (1920×1080)
SMART TV support: Yes
Digital tuner: No
Panel type: LED
Screen format: 16:9
Wi-Fi Connectivity: Yes
Inputs: AV, HDMI x3, USB x2, Ethernet (RJ-45), Wi-Fi 802.11ac, CI
Outputs: Optic
Sound system: 2×8 W
Dolby: Yes
Supported formats: MPG, MPEG, MPEG2-PS, MP4, MKV, AVI, ASF, FLV, MP3, JPEG, PNG, BMP
Operating system: Linux
Refresh rate: 60 Hz
Wireless data transmission: Miracast
Contrast Ratio: 3,000,000: 1
Response Time: 2ms
Color System: PAL, SECAM, NTSC
TV System: PAL / NTSC
Operating System Linux
Component In (RGB Cable) Yes
Composite In (Audio Video Cable) Yes
Headphone Jack Yes
Sound Technology Dolby Digital Decoder
Wi-Fi Type 2.4GHz Wi-Fi 802.11 b/g/n 2T2R
CPU Dual Core A9 896MHz
GPU Dual Core MALI 400MHz
RAM/ROM 768M Byte DDR3 / 4G Byte eMMC

How to Write 40-NT63D1-MAB2HG EMMC Backup:

Download the given 40-NT63D1-MAB2HG EMMC backup shared in this post below

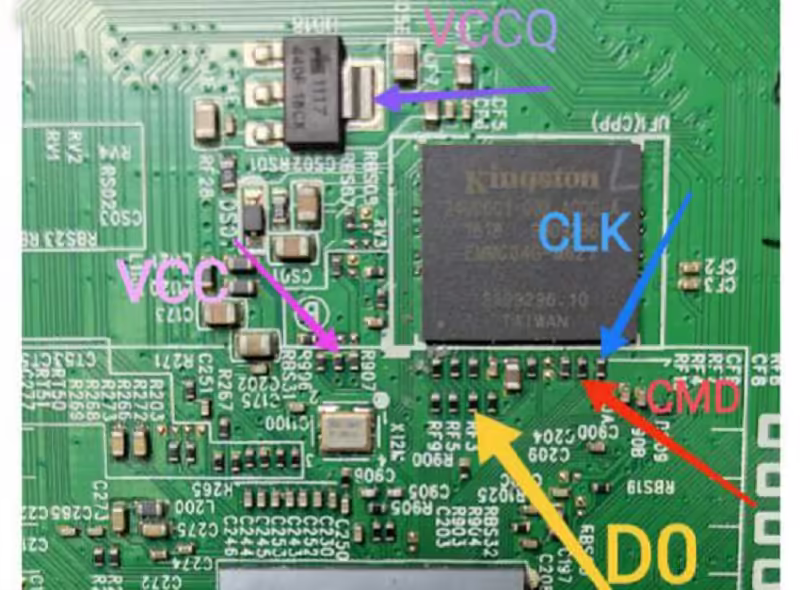

Note the EMMC Pinouts in the given picture above
Jtag the mainboard with the Programming Tool
Write the EMMC data
Done.

Note: The following 40-NT63D1-MAB2HG firmware is USB bootable and a backup dump file. Kazmi Elecom Team is not responsible for any type of damage/loss as a result of uploading/downloading the firmware. First, check and verify the main board then install software. If you are new and do not have enough knowledge of loading/installing software/firmware or dump files, or facing any issues during firmware installation then visit and read here first.
