40-MT56SE-MAC2HG Software Free Download

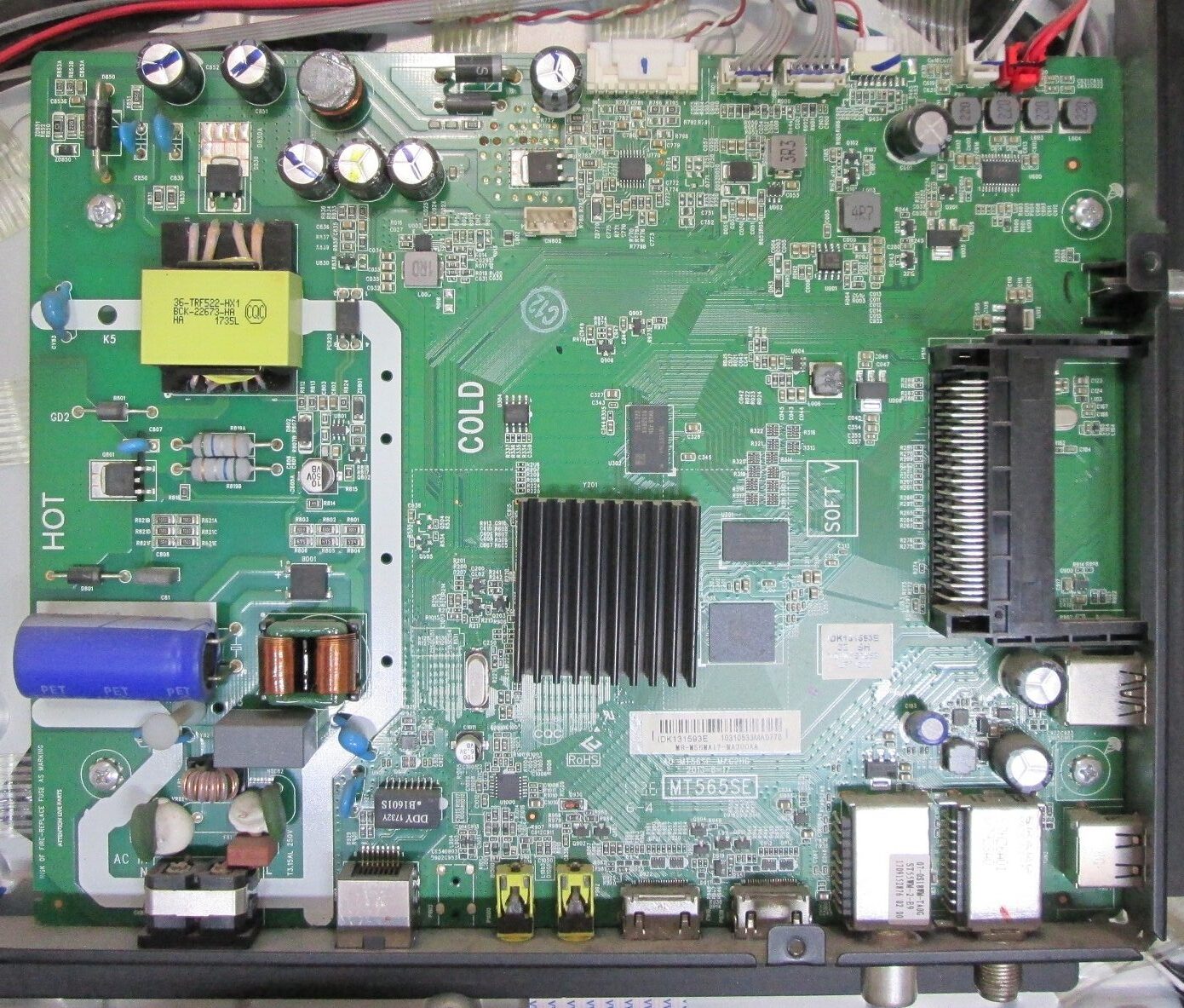

40-MT56SE-MAC2HG LED TV Board

40-MT56SE-MAC2HG is a smart LED TV motherboard. Its supported resolution is 1920×1080 Full HD 1080 Pixels. It is a Combo three-in-one driver controller board. The main power supply input module is combined with an LED backlight driver inverter module and cable TV tuners. The sound card is also built on a single PCB. Audio output with stereo dual speaker is 16 watts. Its main storage memory (ROM) is 4GB EMMC And Flash. It has a built-in WiFi system. It has dual TV tuners for analog signal reception and digital signal reception.

Download Here

40-MT56SE-MAC2HG board has multiple user connectivity interfaces such as a CI+ interface and a dual HDMI input interface for connecting Digital devices such as Play Stations, Digital Cameras, Set-Top boxes, Gaming Consoles, etc. It has mini composite ports for connecting analog devices. It has dual USB input ports to connect USB devices, play multimedia files, and upgrade software. For wired internet connectivity, it has an Ethernet port (LAN) to get faster and smooth browsing.

40-MT56SE-MAC2HG General Information:

Model Name: 40-MT56SE-MAC2HG

Chassis: MT565SE

Main Chipset: MediaTek MT5655VGNJ

Software Version: V8-MT56552-LF1V

Resolution: 1920×1080

Processor: MediaTek

RAM: 512 MB

ROM: 4 GB EMMC

EMMC: Toshiba THGBMG5D1LBAIL

EEPROM: 24C32

Aspect Ratio: 16:09

Audio Power Output: 16w (8×2)

System: PAL//SECAM/NTSC

Dual Tuner: Yes

Digital Tuner: DVB-T, DVB-T2, DVB-C, DVB-S2

HDMI: 2

USB Ports: 2

VGA: No

SPDIF: No

Scart: No

CI+=Yes

LAN: Yes (RJ45)

Firmware:

Firmware Type: EMMC Backup Dump

Service Menu Code:

Menu Contrast 1950. For more Service Menu Codes visit Here.

40-MT56SE-MAC2HGTechnical Specifications:

Manufacturer: China
Display Type: 2K
Screen Resolution: Full HD (1920×1080)
SMART TV support: Yes
Digital tuner: Yes
Panel type: LED
Screen format: 16:9
Wi-Fi Connectivity: Yes
Inputs: AV, HDMI x2, USB x2, Ethernet (RJ-45), Wi-Fi 802.11ac, CI
Outputs: Optic
Sound system: 2×8 W
Dolby: Yes
Supported formats: MPG, MPEG, MPEG2-PS, MP4, MKV, AVI, ASF, FLV, MP3, JPEG, PNG, BMP
Operating system: Linux
Refresh rate: 60 Hz
Wireless data transmission: Miracast
Contrast Ratio: 3,000,000: 1
Response Time: 2ms
Color System: PAL, SECAM, NTSC
Digital Tuner: DVB-T, DVB-T2, DVB-C, DVB-S2
TV System: PAL / NTSC
Operating System Linux
Component In (RGB Cable) Yes
Composite In (Audio Video Cable) Yes
Headphone Jack Yes
Sound Technology Dolby Digital Decoder
Wi-Fi Type 2.4GHz Wi-Fi 802.11 b/g/n 2T2R
CPU Dual Core A9 896MHz
GPU Dual Core MALI 400MHz
RAM/ROM 768M Byte DDR3 / 4G Byte eMMC

How to Write 40-MT56SE-MAC2HG EMMC Backup:

Download the given 40-MT56SE-MAC2HG EMMC backup shared in this post below

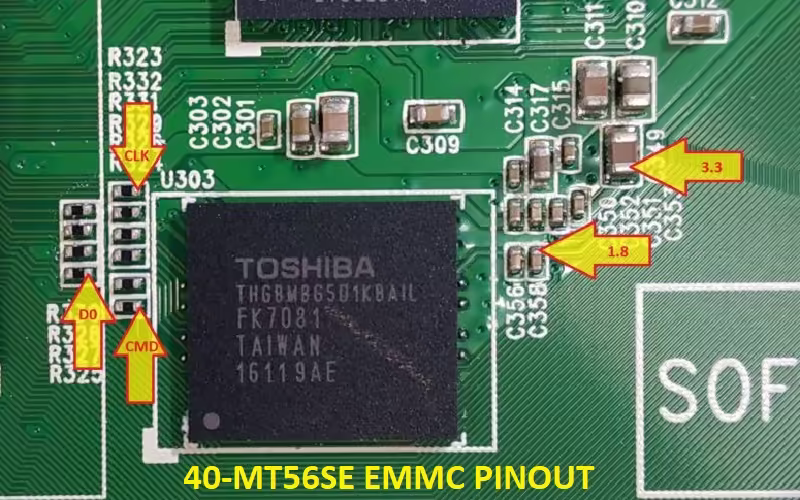

Note the EMMC Pinouts in the given picture above
Jtag the mainboard with the Programming Tool
Write the EMMC data
Done.

Note: The following 40-MT56SE-MAC2HG firmware is USB bootable and a backup dump file. Kazmi Elecom Team is not responsible for any type of damage/loss as a result of uploading/downloading the firmware. First, check and verify the main board then install software. If you are new and do not have enough knowledge of loading/installing software/firmware or dump files, or facing any issues during firmware installation then visit and read here first.
