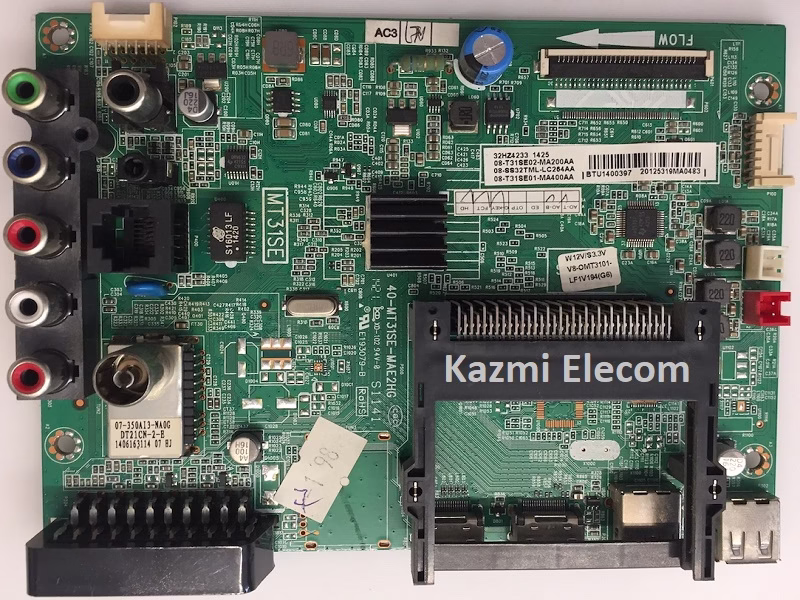

40-MT31SE-MAE2HG LED TV Board
40-MT31SE-MAE2HG is a simple ATV Driver Motherboard designed for LCD/LED TVs. It is manufactured to support Full High Definition LCD-LED Panel Screens. This board is suitable for the Asia Pacific and the Middle East markets. This is not a three-in-one Combo Board. The main power module, the LED Backlight Inverter Circuit module will be required separately but a cable TV tuner is built into this motherboard.
This board has all the features and connectivity ports as per the latest user requirements like HDMI input, USB interface, PC input, Component Input, TV, and Scart. Its USB interface can be used for updating software/firmware and for playing multimedia files as well. It can also support Earphone output. 40-MT31SE-MAE2HG firmware files are given below for the technician’s support.
General Specifications:
Brand/Mark: Universal Board
Chassis: MT31SE
Board Model: 40-MT31SE-MAE2HG
Main Chip:
Product: LCD/LED TV
LED Backlight: mA
Flash IC: 8Mb
Sound Chip:
Tuner IC:
Screen supported: inch
Resolution: Up to 1920×1080
Panel Voltage: 5V, 12V
Power Input: 12 Volt DC
Firmware Name: upgrade.pkg, upgrade_loader.pkg
Firmware Type: USB Bootable and Backup Dump
Software Version: V8-0MT3102-LF1V225
Service Code:
Enter in the user menu.
Press OK on the icon: picture.
Scroll down to the line: contrast.
With the remote control, do the key sequence: 6 4 2 5
Note: The following firmware is a backup file. Kazmi Elecom Team is not responsible for any type of damage/loss as a result of uploading/downloading the firmware. First, check and verify the main board then install software. If you are new and do not have enough knowledge of loading/installing software/firmware or dump files, or facing any issues during firmware installation then visit and read here first.
