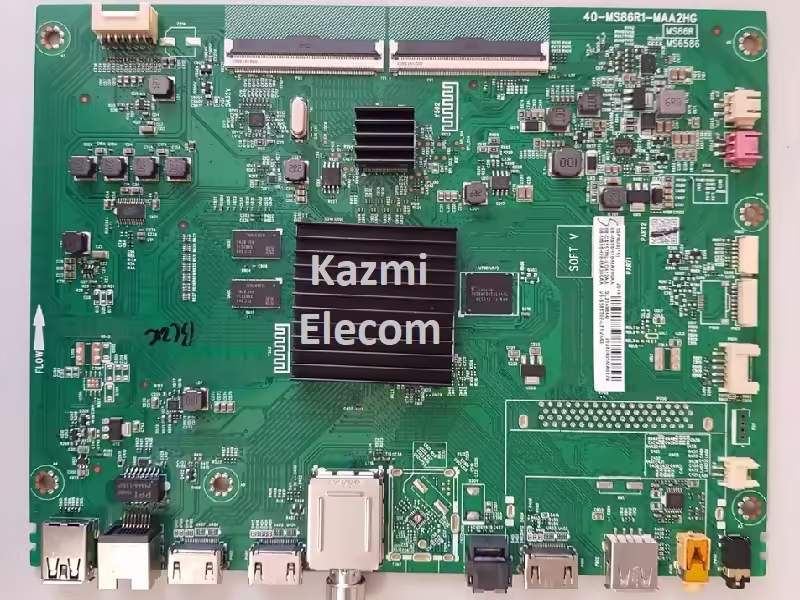

40-MS86R1-MAA2HG UHD TV Board

40-MS86R1-MAA2HG is a smart android UHD LED TV Board. This board can support 55-inch to 75-inch 4K LED TV Screen Panels. Its supported resolution is 3840×2160 4K 2160 pixels. This Ultra HD smart Android board is a non-combo board. The main PCB motherboard is built with cable TV tuners only. To complete the LED TV installation setup, the main input power module circuit board and the backlight driver inverter circuit board are required separately. This board has the option of both analog (PAL, NTSC, SECAM) and digital TV reception signal options but a digital tuner (DVB) is optional in some regions. This board is supported with HDR (High Dynamic Range).

Download Here

40-MS86R1-MAA2HG Ultra HD smart Android board is equipped with several input/output ports for user convenience such as two USB input ports for sharing and connecting external disk drives and other USB peripherals. The user can also use the USB ports to upgrade software. It has triple HDMI input ports for connecting external full HD devices such as Set-top Boxes, Gaming consoles, Blu-ray media players, plantations, etc. This board has also mini component input ports for connecting analog devices. An optical output (SPDIF) interface is available. A headphone output jack is available on this board. LAN interface is also available.

40-MS86R1-MAA2HG is made with a Mstar chipset so its graphic quality is very excellent with a dual-core Mali GPU. It has 1 GB RAM and 8 GB storage memory (EMMC). Its processing speed is very fast with the Arm cortex quad-core processor (MSD6586).

40-MS86R1-MAA2HG General Information:

Board Model: 40-MS86R1-MAA2HG

Processor: MSD6586PYUT-8

Chassis: MS6586, MS86R

Software Version: V8-S586T02-LF1V

CPU: CA9 *2, 1.0GHz

GPU: Dual-Core MALI-400

Android Version:

Resolution: 3840×2160

Audio Power: 2x8W (16 watt 8 ohm)

Backlight Current: NA

Backlight Power: NA

USB Ports: 2

HDMI Ports: 3

CI: No

Component: Yes (Mini)

RJ45: Yes

Analog Tuner: PAL, DRY

Digital Tuner: DVB-T, DVB-T2, DVB-C, DVB-S/S2

Wifi: Yes

Mira-Cast: Yes

SPDIF OUT: Yes

Memory (RAM): 1 GB DDR3

Storage (ROM): 8 GB EMMC Flash

Power Rating: 220V~240V 50Hz

Power Consumption: 125Watt

Firmware Name:

Firmware Type: EMMC Backup Dump

Product User: TCL, THOMSON, HITACHI, TOSHIBA

40-MS86R1-MAA2HG Technical Specifications:

Operative System Linux, Android
Display 3840*2160
RAM/ROM 1.0G Byte DDR3 /8G Byte ROM
HDR HDR10 Decoding
HDMI ports 3
HDMI Support MHL & ARC
Ethernet sockets 1
USB ports 2
USB supports Audio, Video, Image
Cable Port Yes
SPDIF Yes
A/V IN Yes
Headphone speaker output ports 1
Refresh rate 60 Hz
Resolution 4K Ultra HD 2160P
Backlight Adjustable Yes (0~100)
Image formats supported BMP, GIF, JPEG, PNG
Analog TV reception formats PAL, NTSC, SECAM
Video formats supported MPEG-1, MPEG-2, MPEG-4
Audio formats supported MPEG-1, MPEG-2, MPEG-4
Dolby Decoder MS12
No. of speakers 2
Total speaker output 20 W
Output per speaker 10 W
Other smart audio features Auto volume leveler: Balance
Sound type 2.0, Stereo
Inbuilt apps Yes
Wi-Fi Yes
Internet Link 2.4GHz WiFi 802.11 b/g/n 2T2R, Ethernet Network
Certification CB, Dolby/MS12, HDMI, YouTube, NETFLIX
Miracast screen mirroring support Yes
Voltage requirement 100 – 240

How to Write 40-MS86R1-MAA2HG EMMC Backup:

Download the given 40-MS86R1-MAA2HG EMMC backup shared in this post below

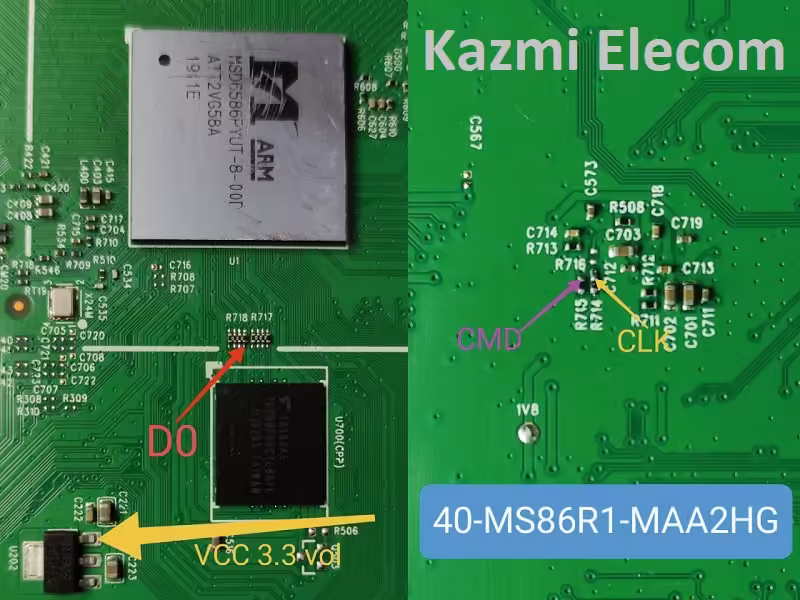

Note the EMMC Pinouts in the given picture above
Jtag the mainboard with the Programming Tool
Write the EMMC data
Done.

Note: The following 40-MS86R1-MAA2HG firmware is USB bootable and a backup dump file. Kazmi Elecom Team is not responsible for any type of damage/loss as a result of uploading/downloading the firmware. First, check and verify the main board then install software. If you are new and do not have enough knowledge of loading/installing software/firmware or dump files, or facing any issues during firmware installation then visit and read here first.
