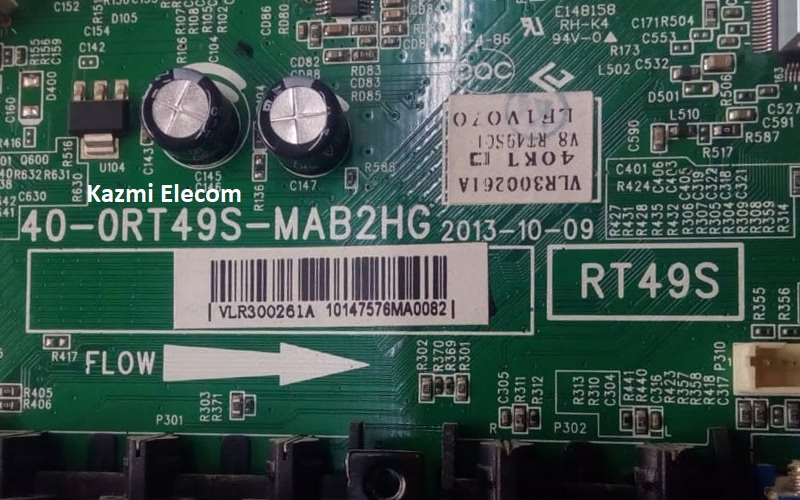

40-0RT49S-MAB2HG LED TV Board
40-0RT49S-MAB2HG is a non-combo HD and FHD LCD LED TV motherboard. It has built an operating system with smart features and applications, but this board is not Android-supported. It can support a Full High-Definition resolution of 1920×1080, with a Refresh Rate of 50/60 hertz, and a smooth motion rate of 200 SMR. It has two HDMI ports to connect a set-top box, Blu-Ray players, and gaming console, and two USB ports to connect external hard drives and other USB devices and to play multimedia audio and video files.
40-0RT49S-MAB2HG has a Dolby Sound system that supports 20 Watts of sound output by a stereo speaker system and a High-Dynamic-Range viewing display. It can also help the features of a Smart TV like Android. This board has a component input interface to connect analog devices, an RJ45 ethernet connection for internet connectivity, a coaxial out, and a headphone output jack. 40-0RT49S-MAB2HG firmware files are given below for free download to support technicians.
General Features & Specifications:
Brand Chasis: RT49S
Board Model: 40-0RT49S-MAB2HG
Display Format: FHD 1080P
Screen Type: LED
Features Format: Smart
OS Version: Smart Not Android
Chipset: NA
Processor: Dual-Core
Graphic Processor: Dual-core
Storage Memory: 132 MB (48-Pin NAND)
Screen Resolution: 1920×1080
No of HDMI Ports: 2
No of USB Ports: 2
VGA: Yes
Built-In Wi-Fi: No
Ethernet (RJ45): Yes
CI+=No
Component Input= Yes
Speaker Output: 20W
Tuner: Yes
NAND MEMORY: 29F1G08ABAEA@TSOP48
Power Requirement: 12V DC
Power Consumption: 80 W
Firmware Type: NAND Backup and USB Bootable
Firmware Version: V8-RT49S01-LF1V070
Product: TCL
Note: The following firmware is a NAND backup and USB bootable file. Kazmi Elecom Team is not responsible for any damage or loss caused by uploading or downloading the firmware. If you are new and lack knowledge of loading or installing software/firmware or dump files, read here first.
How to Download 40.0RT49S.MAB2HG Firmware File:
Download all parts of the following firmware and then extract any one of them you will get the folder. Now copy the files to USB. For more Details about the download process watch the video Click Here
40-0RT49S-MAB2HG Firmware for free download:
