3RT841B Firmware Free Download

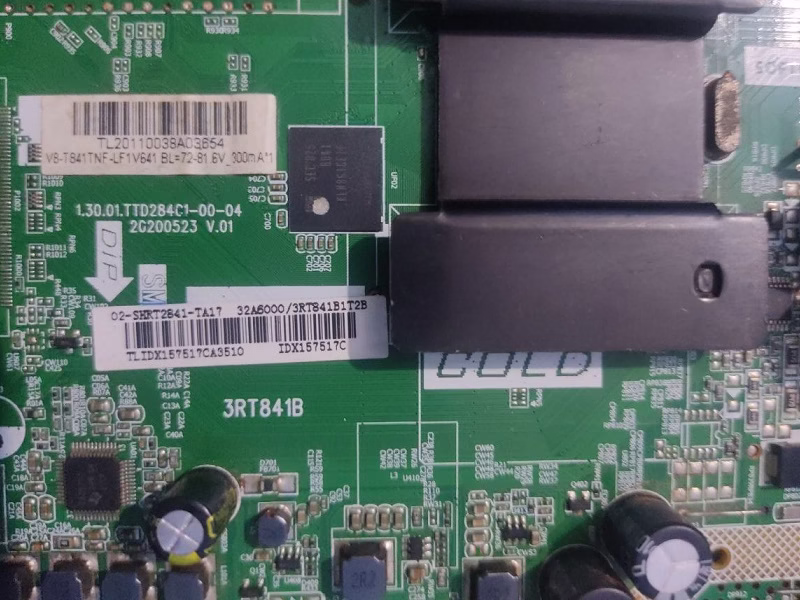

3RT841B Smart Android Board

3RT841B is a smart Android LCD/LED Driver Board. It can support maximum resolutions of up to 1920×1080 Full HD screen Panels. This Combo board is a Multi-Purpose LED FHD TV Driver Control Board. It has multiple input/output interface ports, such as WIFI, RJ45, USB 2.0, HDM 2.0, SPDIF, AV, YPbPr, and Analog TV input, which also support Optical and earphone output.

Download Here

The 3RT841B is based on the Android operating system and has a built-in 1.5GB RAM and 8 GB storage memory. Its firmware can be updated via the USB interface. Here are the different brands’ firmware files available for the Technician’s support.

General Features and Specifications:

Model No: 3RT841B 1.30.01.TTD284C1-00-03/04/08 201-MT841C1N-28 V0.0, V0.1

CHIPSET: RTD2841SCG

POWER To Panel: 12V

CPU: Quad-Core

RAM: 1.5 G

ROM: 8GB EMMC Flash

Resolution Format: 1080

OS: Android 9.0

HDMI Input: 03

USB Input: 02

RCA Component: Yes

VGA: No

SPDIF: Yes

Backlight: 36-40.8V OR 72-81.6V 300mA OR 600mA

Network: Support Ethernet, WIFI, 3G

System update: Support USB/SD update

AC Input Requirement: 100 ~ 240V

Low power consumable mode: standby≤0.5W

Firmware Name: Install.img

Firmware Type: USB Bootable

Product Users: NOKIA, PANASONIC, ARTEL, VISION

Note: The following software/firmware is USB upgradeable. Kazmi Elecom Team is not responsible for any damage/loss caused by uploading/downloading the firmware/software. If you are new and lack knowledge of loading, installing, or dumping files, read here first.

How to Download:

Download all parts of the following given firmware and then extract any one of them you will get the folder. Now copy the files to USB. For more Details about the download process watch the video Click Here

3RT841B firmware for free download:
