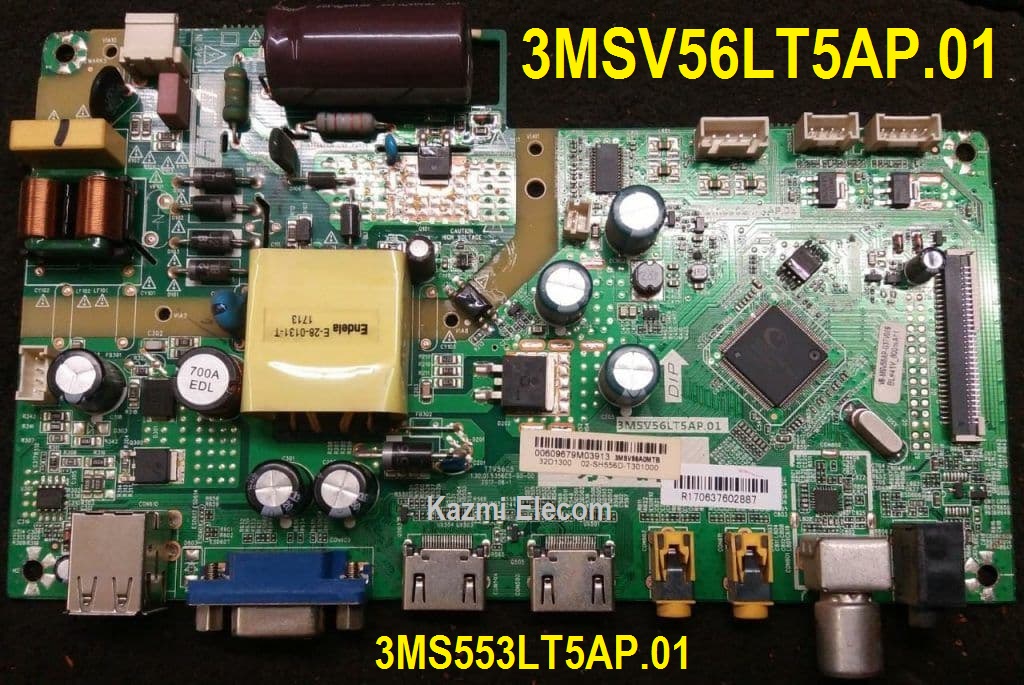

3MSV56LT5AP.01 LED TV Board
3MSV56LT5AP.01 is a universal LCD/LED Board that has Full HD resolution Supported up to 1920×1080 but is the best fit for HD panels. It is a combo board means the main power supply, ATV board, and LED backlight driver board are built in a single PCB. 3MSV56LT5AP firmware files are given below for the technician’s support.
General Specifications:
Brand/Mark: China Universal
Model: 3MSV56LT5AP.01, 3MS553LT5AP.01
Main Chip: TSUMV56
TV System: PAL\SECAM\NTSC
Product: LED TV
Input Voltage: 220V AC
MAX Backlight Watt: 50W
Backlight voltage:
Resolution: up to 1366×768/1920×1080
Service Menu:
Source/Input 2580
Note: The following is given firmware is dump backup. Kazmi Elecom Team is not responsible for any type of damage/loss as a result of uploading/downloading the firmware. If you are new and do not have enough knowledge of loading or installing software/firmware or dump files then read here first.
How to Download Firmware Files:
Download the following given firmware and then extract it you will get the folder. Now load the file by a programmer. For More Detail about the download, process watch the video Click Here
3MSV56LT5AP.01 firmware for free download:
| S.NO. | BOARD/DESCRIPTION | DOWNLOAD LINK |
|---|---|---|
| 1 | 3MSV56LT5AP.01_Intex_Firmware | Download |
| 2 | 3MSV56LT5AP.01_Micromax_Firmware | Download |
| 3 | 3MSV56LT5AP.01_Orange_Firmware | Download |
| 4 | 3MSV56LT5AP.01_Orient_Firmware | Download |
For video tutorials, visit “Kazmi Elecom” my youtube channel.
