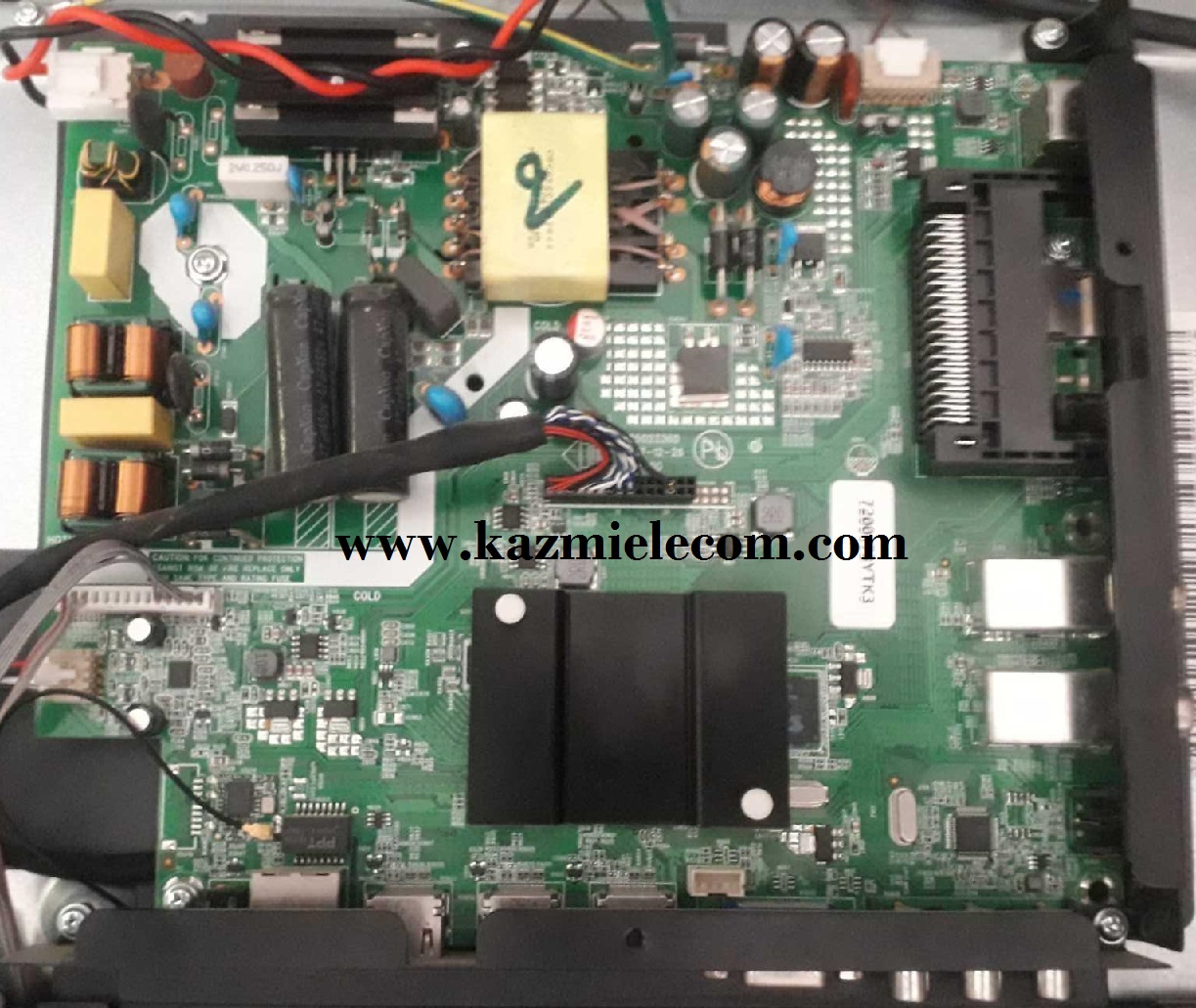

*35023360 Smart LED TV Board
*35023360 is an Intelligent smart 2K network driver LED TV board with an Integrated digital terrestrial receiver support resolution of 1920×1080. It is a combo board. Smart FHD TV With Android Platform 6.0 and great features to entertain Full HD Wide Screen with better to work SMART. it has the full features of input interface connectivity.
It has multiple ports like HDMI, AV, Headphone, VGA interface, USB ports, Card Reader, and RJ45 Ethernet port for wired internet connectivity. Its USB interface can be used for Firmware upgrades and as well as for multimedia playback. It is a digital and analog TV board, it can receive analogtelevision (PAL/SECAM/NTSC) and digital television (DVB-T/T2) signals. *35023360 firmware file is given below for Technician’s support.
General Features & Specifications:
Brand/Make: LCD/LED FHD Smart Driver Board
Model: *35023360
Supported Resolution: 1920×1080 FHD 2K
Screen Format: 16:9
Operating System: Android 6.0
CPU: ARM Cortex-A53
GPU: Mali T720 MP2
RAM: GB DDR3
ROM: Gb
Sound Output: 10Wx2 DOLBY
RF TUNER: DIGITAL TUNER DVB-T/T2
Video System: PAL/SECAM/NTSC
Power Input: 110-240 V AC
Power Consumption: 150W
Standby Power: 0.5W
Firmware: MainzUpgrade.bin
Firmware Type: USB Update Firmware
Product: BRANDT
Note: The following given software/firmware is USB upgradeable. Kazmi Elecom Team is not responsible for any type of damage/loss as a result of uploading/downloading the firmware. If you are new and do not have enough knowledge of loading or installing software/firmware or dump files then read here first.
How to Download:
Download all parts of the following given firmware/software and then extract any one of them you will get the folder. Now copy the files to USB. for More Detail about the download process watch the video Click Here
Here is below *35023360 firmware file for free download:
| S.NO. | BOARD/DESCRIPTION | DOWNLOAD LINK |
|---|---|---|
| 1 | 35023360_1366x768_BRANDT_Firmware.part1 | Download |
| 35023360_1366x768_BRANDT_Firmware.part2 | Download | |
| 35023360_1366x768_BRANDT_Firmware.part3 | Download | |
| 35023360_1366x768_BRANDT_Firmware.part4 | Download | |
| 35023360_1366x768_BRANDT_Firmware.part5 | Download |
Hello sir, my TV has been challenged with this challenge according to the motherboard number, but the screen does not give data. I think there is a glitch in the resulation please help me.
TV Specifications
Brandt BAD43f7bs
Main board *35023360
panel:72001525ytk4
given software is for 32 inches not have for 43 inches
Please sir, is there a solution, I am in a difficult problem
you did not tell me about the problem.
post of the Forum Page
hi sir, i have Nikai smart TV 32000s LED 32 inches which shows smart wisdom and does not open i have showed lot of technicians they say they can’t get the update please help me, Thank You.
it can be recovered by the software. first, check the mainboard and post on Forum with details
My Skyview TV is stuck on android logo during starting, the Motherboard model is P150-9632V6.2A
i believe i need a software upgrade
kindly advice
First, try to hard reset:
https://www.kazmielecom.tech/how-to-reset-smart-tv/
This is very informative re-TV repair information
