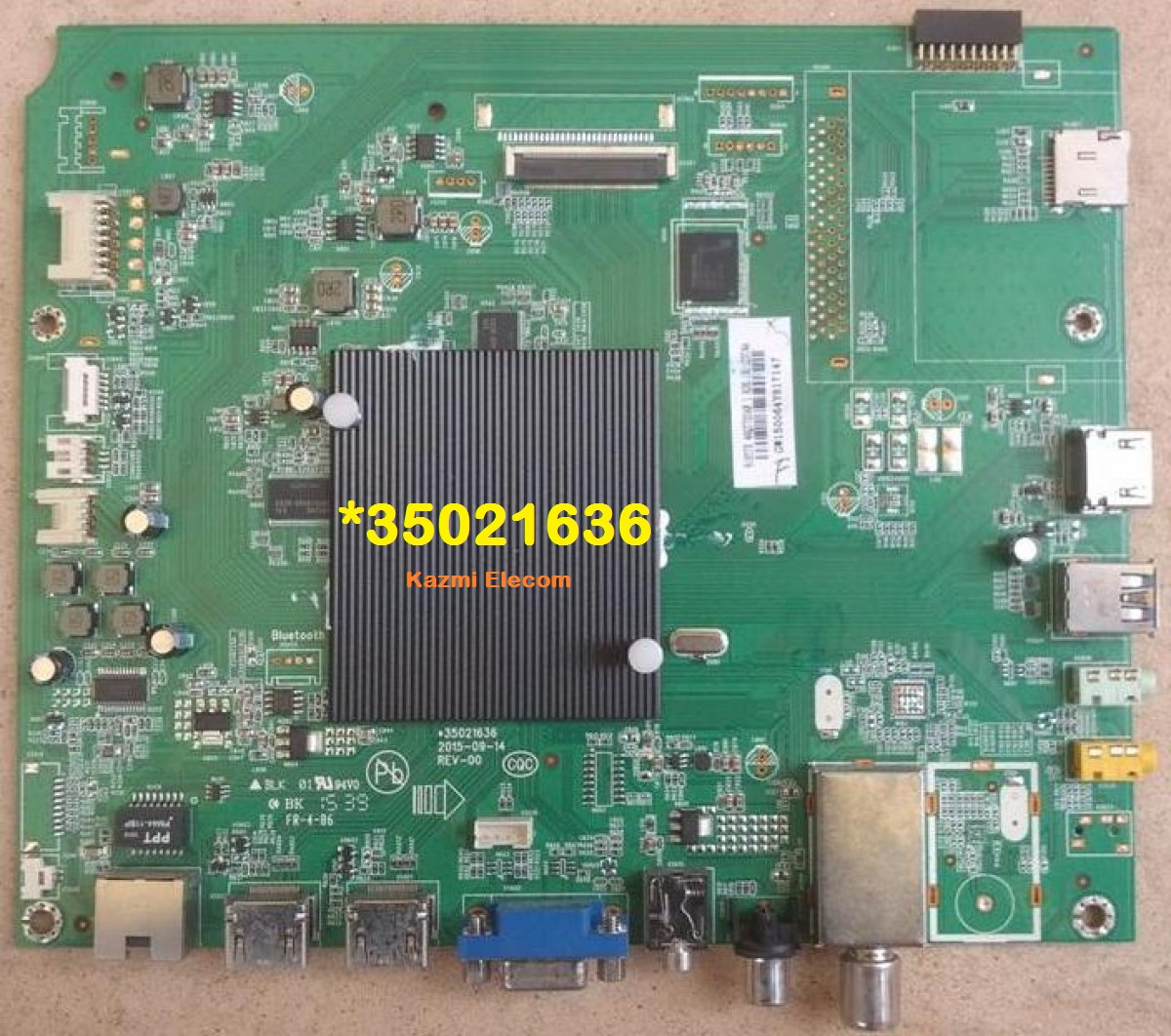

*35021636 Smart FHD LED TV Board
*35021636 is a non-combo DVB-T FHD LED TV Android Board. It has supported a Full HD resolution of 1920×1080 and a Refresh Rate of 60 hertz. It is a non-combo board and has all connectivity interfaces like triple HDMI input ports, Mini RCA input, SD card reader, RJ 45 Connection, and dual USB input ports by which users can connect external hard disks and other USB devices and play multimedia as well. It has Dolby DTS Support 20 Watts sound output and HDR Display viewing.
*35021636 can support Smart TV Features such as Android, Google Play Store, Google Voice Search, Remote with Voice & Air Mouse, and also has Front Firing Speakers and 3D mode. *35021636 firmware files are given below for free of cost download to support technicians.
General Features & Specifications:
Brand: China
Board Model: *35021636
Display Format: FHD 1080P
Screen Type: LED
Features Format: Smart
OS Version: Android 4.4
Chipset: Mstar MSD6369IV
Processor: Dual Core
Graphic Processor: Quad-core
RAM Capacity: GB DDR3
Storage Memory: GB ROM
Screen Resolution: 1920×1080
No of HDMI Ports: 3
No of USB Ports: 2
Wi-Fi Type: Wi-Fi
Built-In Wi-Fi: Yes
Ethernet (RJ45): Yes
Speaker Output RMS: 20W (10W*2)
Tuner: MXL601
Power Requirement: AC 110 – 240 V, 50/60 Hz
Power Consumption: 120 W
Firmware Type: USB Update
Firmware Name: MstarUpgrade.bin
Product: Kogan KALED49SMTZA
Caution:
All the pictures and specification details related to *35021636 in this post are for reference only. If you are a user and do not have any repair experience, it is better to visit the nearest technician first without loading the software/firmware. Sometimes, the fault is different based on the visual observations. So, please do not try it at home. If the LED TV is slow then reset it to Factory Default only.
Pros:
There are many advantages to installing the given *35021636 USB software or eMMC backup dump file. A few benefits are described below:
- The dead board can be recovered and operational by loading the given USB software or EMMC backup file
- Remote and Logo may change at your own choice to satisfy the customer
- Money saving instead of changing the mainboard
- Time-saving instead of arranging a new board
- Customer satisfaction to do an urgent job
- Skill and confidence improvement
Cons:
There may be some disadvantages to installing the given *35021636 USB software or backup dump file. But it depends on the technician or user, as per his understanding. A few drawbacks are described below:
- The working board may go to the standby position
- Remote Control may not work and the Logo may change by writing the given software
- Panel screen parameters may be changed
*35021636 Android Version Upgrade:
Please note that the installed version in this board is the final version and the Android version is not updateable. So, no need to upgrade the software if the board is working normally. Only if, the default software malfunctions due to some bugs will the manufacturer provide the software update. Otherwise, no version update is issued.
*35021636 EMMC Backup:
This board has a 4/8GB eMMC chip. you can read the EMMC backup by Pendrive but for writing a backup of EMMC you should jtag the mainboard *35021636 and write by a programming tool. Be careful while writing emmc backup file, if the board is on standby light due to wrong software or incomplete installation then you can do it, otherwise, it is on standby or red light due to hardware fault. So, first trace the fault. In this case, no need to write emmc backup.
*35021636 Board Replacement:
If the board is completely dead and no chance to repair then replace the same board as already installed. And if the same board is not available on the market then search for the board that has the same specifications, the newest Android version, and the latest features to avoid any difficulties. If the backlight module is faulty in the combo board then you can install only the backlight module separately then no need to change the whole board.
Note: The following firmware is a USB bootable and EMC backup file. Kazmi Elecom Team is not responsible for any damage/loss caused by uploading/downloading the firmware. First, check and verify the main board then install software. If you are new and do not have enough knowledge of loading/installing software/firmware or dump files, or facing any issues during firmware installation then visit and read here first.
How to Download:
Download all parts of the following given firmware and then extract any one of them you will get the folder. Now copy the files to USB. For more Details about the download process watch the video Click Here
*35021636 Firmware for free download:
| S.NO. | BOARD/DESCRIPTION | DOWNLOAD LINK |
|---|---|---|
| 1 | 35021636_1920x1080_KOGAN KALED49SMTZA.part1 | Download |
| 35021636_1920x1080_KOGAN KALED49SMTZA.part2 | Download | |
| 35021636_1920x1080_KOGAN KALED49SMTZA.part3 | Download | |
| 35021636_1920x1080_KOGAN KALED49SMTZA.part4 | Download | |
| 35021636_1920x1080_KOGAN KALED49SMTZA.part5 | Download |
Table of Contents:
hello, I’ve this TV board installed wrong firmware on it through USB, no TV is not working, no lights at all.
I’ve the tight original firmware but its not accepting through USB. I used a mouse to check USB port is working, there is light on the mouse so TV has power. please how to fix it now. tell me please if ttl uart or rt809f could fix it with desoldering any IC, thanks.
JTAG by RT809H and Load EMMC Backup
Thanks for reply.
Can you explain more please,I will order rt809f but do I have to just use it as normal with vga or its something else for jtag?
watch youtube tutorials
And if you have number on WhatsApp or something to contact with you, it will be much appreciated.
I’ve another 2 TVs has stopped working lately, thanks in advanced.
