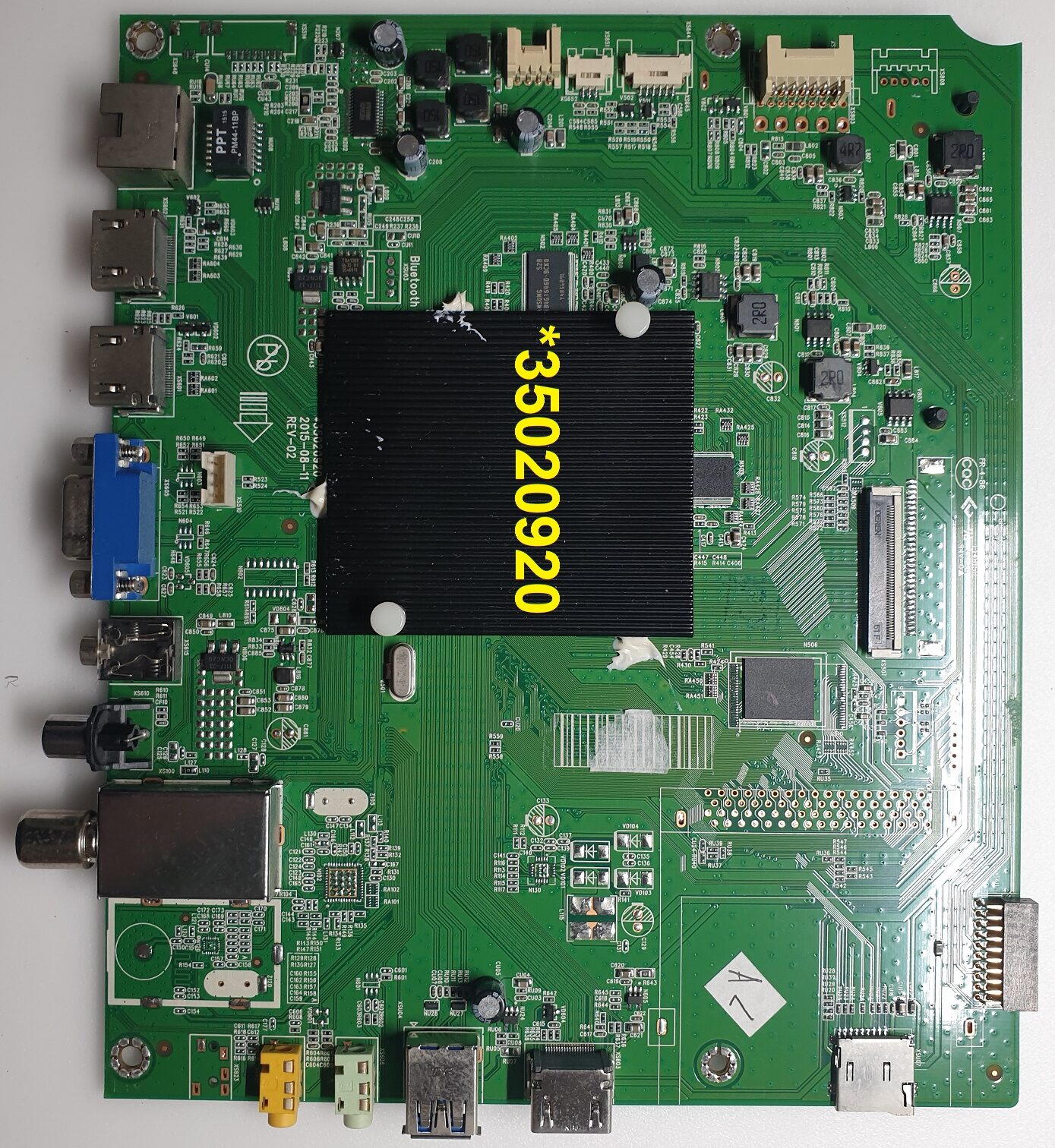

*35020920 FHD Smart Board
*35020920 is a non-combo DVB-T FHD LED TV Android Board. It has supported Full HD resolution of 1920×1080 and a Refresh Rate is 60 hertz. It has multiple HDMI ports to connect a set-top box, Blu Ray players, gaming console, and also have more than one USB port to connect hard drives and other USB devices and playing multimedia as well. It has Dolby DTS Support 20 Watts sound output and HDR Display viewing.
*35020920 can support the Smart TV Features as Android, Google Play Store, Google Voice Search, Remote with Voice & Air Mouse also have Front Firing Speakers, and 3D mode with passive image reproduction technology, 2D to 3D video conversion mode, etc. *35020920 firmware files are given below for free of cost download to support technicians.
General Features & Specifications:
Brand: China
Board Model: *35020920
Display Format: FHD 1080P
Screen Type: LED
Features Format: Smart
OS Version: Android 4.2
Chipset: Mstar MSD6369
Processor: Quad-Core
Graphic Processor: Quad-core
RAM Capacity: 512MB DDR
Storage Memory: 4 GB ROM
Screen Resolution: 1920×1080
No of HDMI Ports: 3
No of USB Ports: 2
Wi-Fi Type: Wi-Fi
Built-In Wi-Fi: Yes
Ethernet (RJ45): Yes
Speaker Output RMS: 20W (10W*2)
Tuner:
Power Requirement: AC 110 – 240 V, 50/60 Hz
Power Consumption: 135 W
Firmware Type: USB Update
Firmware Name: MadisonUpgrade.rar
Product: Kogan
Note: The following given firmware is USB upgradeable. Kazmi Elecom Team is not responsible for any type of damage/loss as a result of uploading/downloading the firmware. If you are new and do not have enough knowledge of loading or installing software/firmware or dump files then read here first.
How to Download Firmware Files:
Download all parts of the following given firmware and then extract any one of them you will get the folder. Now copy the files to USB. For more Details about the download process watch the video Click Here
*35020920 Firmware for free download:
Sir pl upload AOC LE19A1331/61 Firmware
Board id 715G5789-M0D-000-004K
PANEL NO M185BGE-L22
https://drive.google.com/file/d/1zKyv7cfDsCTmItqkSnSZTXB3p66HBqfN/view?usp=sharing
Thanks sir is file se mera tv standby se nikal gaya or on hogaya lekin ye firmware 22 inch ka hain aur mera tv 19 inch ka hain mera diaplay proper nahi aa raha plz koi solution bataye
resolution ka farq hoga. mere pas to sirf FHD me he hy
Sir resolution set karne ka koi tariqa ho to plz bataye
1366×768 resolution ka chahiye
