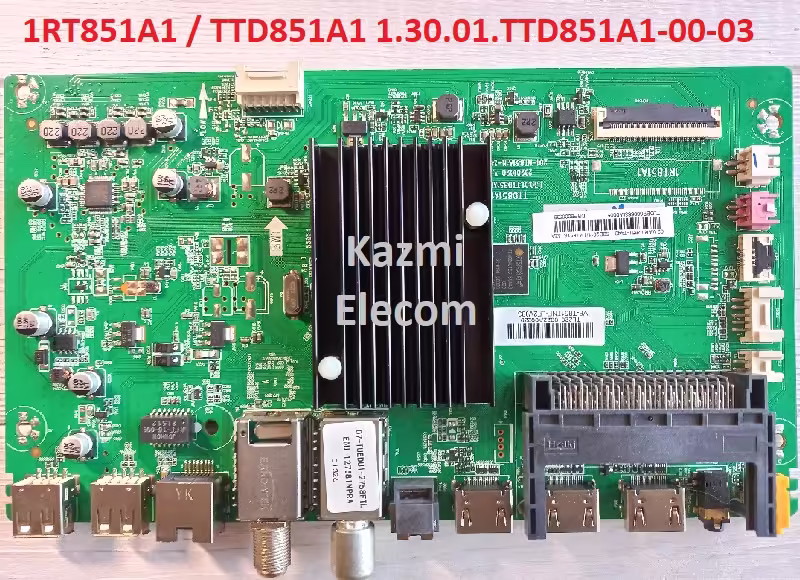

1RT851A1 TTD851A1 1.30.01.TTD851A1-00-03 4K Board
1RT851A1 TTD851A1 1.30.01.TTD851A1-00-03 is an Android smart Ultra HD LED TV Board. The supported resolution of this motherboard is 2160 pixel Ultra High Definition 3840×2160 Full 4K. This 4K board is built with 2 GB RAM and 16 GB storage memory capacity. This board can receive analog signal reception and digital signal reception (DVB-T2/T/C/S2/S) with dual cable TV tuners.
TTD851A1 is a non-combo board. The main power supply input module and the backlight inverter module will be installed separately. TTD851A1 motherboard has all the necessary connectivity interfaces such as triple HDMI input ports, Dual USB input ports, Component ports, CI+ interface, SPDIF interface, and ethernet connectivity interface for wired internet connectivity.
TTD851A1 General Information:
Board Model: 1RT851A1 TTD851A1 1.30.01.TTD851A1-00-03 201-MT851A1N-24
Main Chipset: RT2851
Chassis: 1RT851A1
Software Version: V8-T851TNF-LF1V
CPU: Quad-Core
GPU: Mali-450
Android Version: Android 9.0
Resolution: 3840×2160
Audio Power: 2x10W (20 watt 8 ohm)
Backlight Volt: NA
Backlight Current: NA
Backlight Power: NA
USB Ports: 2
HDMI Ports: 3
CI: Yes (Optional)
Component: Yes
RJ45: Yes
Tuner: ATV and DTV (Optional)
Wifi: Yes
Mira-Cast: Yes
Bluetooth: 4.0
Memory (RAM): 2GB DRAM
Storage (ROM): 16 GB EMMC Flash
Power Rating: NA
Power Consumption: 105Watt
Firmware Name: NA
Firmware Type: EMMC Backup Dump
Product User: Panasonic, SCHNEIDER, Hyundai, Pioneer, THOMSON
TTD851A1 Technical Specifications:
- Resolution 4K UHD 2160P 3840×2160
- Interface type HDMI compatible
- Permission QVGA (320*240)
- Reception system DVB-T2/T/C/S2/S
- 3D support No
- Network support Yes
- Aspect ratio 16:9
- SD card support No
- USB ports 2
- Wi-Fi Yeah
- Ethernet port Yeah
- HDMI ports 3
- Play audio formats MP3/AAC
- Plays image formats JPEG/PNG/BMP
- Play video formats H.265/H.264/MPEG1/MPEG4/XVID/
- RCA connection Yeah
- Bluetooth Yeah
- Voice control Yeah
- Remote control Yeah
- Football mode No (Sport Mod)
- Level of definition Ultra HD
- Digital tuner Yeah
- Smart TV Yeah
- Integrated camera No
- VGA connection No
- Component video inputs Yeah
- Refresh rate (Hz) 60HZ
- SD memory reader No
- Facial recognition No
- Screen resolution 3,840 (Width) x 2,160 (Height)
- Sound system Dolby Digital Plus
- Screen type 4K ULTRA HD LED LCD
How to Write TTD851A1 EMMC Backup:
- Download the given TTD851A1 EMMC backup is shared in this post below
- Note the EMMC Pinouts (D0, CMD, CLK)
- Jtag the mainboard with the Programming Tool
- Write the EMMC data
- Done.
Note: The following 1RT851A1 TTD851A1 1.30.01.TTD851A1-00-03 firmware is USB bootable and a backup dump file. Kazmi Elecom Team is not responsible for any type of damage/loss as a result of uploading/downloading the firmware. First, check and verify the main board then install software. If you are new and do not have enough knowledge of loading/installing software/firmware or dump files, or facing any issues during firmware installation then visit and read here first.
