17MB140TC Software Free Download

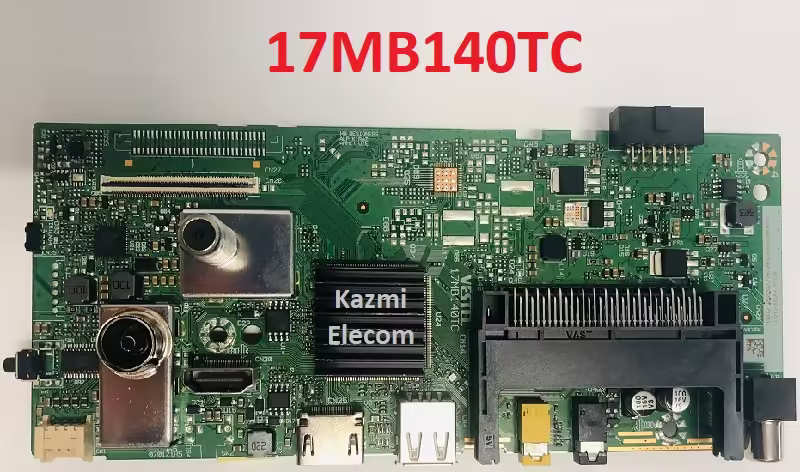

17MB140TC LED TV Board

17MB140TC is a non-smart universal LCD LED TV controller board made by VESTEL. This board is not a three-in-one board. This is called a non-combo board also which means the main power input section and the LCD/LED TV backlight inverter section are not available in the main PCB board. Only the Cable antenna tuner is available in the mainboard while the other modules are required to complete LED TV. It has both Analog and Digital TV reception systems.

Download Here

17MB140TC has multiple input interfaces as per user demand such as dual HDMI inputs for connecting Full HD external devices like Blu-ray media players, gaming consoles, PlayStations, STBs, etc. It also has a mini component input interface for connecting analog devices. It has USB input by which the user can play multimedia files of his own choice, upgrade software, connect external hard disk drives, etc. It also has the Common Interface (CI+).

17MB140TC General Information:

Board Model: VESTEL 17MB140TC

Processor: Mediastar

Operating System: Non-Android

Android Version: NA

Resolution: 1366×768/1920×1080

Audio Power: 2x6W (12 watt 8 ohm)

Backlight Current: NA

Backlight Power: NA

USB Ports: 1

HDMI Ports: 2

CI: Yes

PC Input: No

Component: Yes (Mini)

Analog Tuner: Yes

SPDIF OUT: Yes

Storage (ROM): 16 MB SPI Flash

Firmware Name: NA

Firmware Type: Backup Dump

Product Users: Vestel, Vortex, Hitachi, Electronia, JVC, Lifemaxx, Horizon, Telefunken

17MB140TC Technical Specifications:

Operative System Non-Smart
Display 1366×768 and 1920×1080
ROM 16MB SPI Flash
HDMI ports 2
USB ports 1
USB supports Audio, Video, Image
Sound Features German + Nicam Stereo
Analog Receiver There is
Terrestrial Receiver (DVB-T) There is
Cable TV (DVB-C) There is
HD Satellite Receiver (DVB-S2) There is
Common Interface (CI+) There is
Analog/Cable Antenna Input 1 Piece
Satellite Antenna Input 1 Piece
SPDIF No
A/V IN Yes (Mini)
PC Input No
Headphone speaker output ports 1
Refresh rate 60 Hz
Resolution 1080P
Image formats supported BMP, GIF, JPEG, PNG
Analog TV reception formats PAL, NTSC, SECAM
Sound Features German + Nicam Stereo
No. of speakers 2
Total speaker output 12 W
Output per speaker 6 W
Sound type Mono
Voltage requirement 12V DC

How to Write 17MB140TC Backup Dump:

Download the given 17MB140TC Backup Dump File as per your requirement
First, read and save the backup of the original SPI Memory Flash Data
Erase the Flash Memory
Write the Flash Memory
Done.

Note: The following 17MB140 TC firmware is a backup dump file. Kazmi Elecom Team is not responsible for any type of damage/loss as a result of uploading/downloading the firmware. First, check and verify the main board then install software. If you are new and do not have enough knowledge of loading/installing software/firmware or dump files, or facing any issues during firmware installation then visit and read here first.
